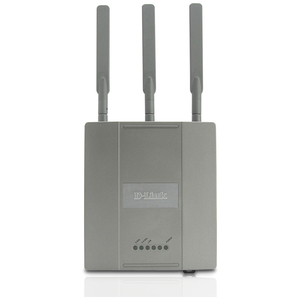

OverviewThe D-Link AirPremier N DAP-2590 Dual Band PoE Access Point is the ideal solution for enabling selectable dual band wireless connectivity in any business. D-Link, an industry pioneer in wireless networking, introduces a solution for businesses seeking to deploy next generation 802.11n LANs. The DAP-2590 Access Point, designed specifically for business-class environments such as large or enterprise corporations, provides secure and manageable dual band wireless LAN options for network administrators.
Versatile Access Point
The DAP-2590 allows network administrators to deploy a highly manageable and extremely robust dual band wireless network. All three dual band antennas are detachable and can provide optimal wireless coverage in either 2.4GHz (802.11g and 802.11n) or 5GHz (802.11a and 802.11n) bands. Enclosed in a plenum-rated metal chassis, the DAP-2590 adheres to strict fire codes for placement in air passageways. For advanced installations, this high-speed Access Point has integrated 802.3af Power over Ethernet (PoE) support, allowing installation of this device in areas where power outlets are not readily available.
The DAP-2590 delivers reliable wireless performance with maximum wireless signal rates of up to 300Mbps1 in either the 2.4GHz or 5GHz wireless band. This, coupled with support for Wi-Fi Multimedia™ (WMM) Quality of Service features, makes it an ideal access point for audio, video, and voice applications. Additionally, the DAP-2590 supports load balancing features to ensure maximum performance by limiting the maximum number of users per Access Point.
To help maintain a secure wireless network, the DAP-2590 provides the latest in wireless security technologies by supporting both Personal and Enterprise versions of WPA and WPA2 (802.11i) with support for RADIUS server backend. To further protect your wireless network, MAC Address Filtering, Wireless LAN segmentation, Disable SSID Broadcast, Rogue AP Detection, and Wireless Broadcast Scheduling are also included.
The DAP-2590 includes support for up to 8 VLANs for implementing multiple SSIDs to further help segment users on the network. It also includes a wireless client isolation mechanism, which limits direct client-to-client communication.
Additionally, the DAP-2590 supports Network Access Protection (NAP), which allows network administrators to define multiple levels of network access based on individual client’s need. If a client is identified outside of their access area, the client will be automatically brought back to their permitted network access level.
Multiple Operation Modes
To maximize total return on investment, the DAP-2590 can be configured to optimize network performance based on any one of its multiple operation modes: Access Point, Wireless Distribution System (WDS) with Access Point, WDS/Bridge (No AP Broadcasting) and Wireless Client. With WDS support, network administrators can set up multiple DAP-2590s throughout a facility and configure them to bridge with one another while also providing network access to individual clients. Also included are advanced features such as Load Balancing, which optimizes high network traffic volume, and redundancy for fail-safe wireless connectivity. Additionally, the DAP-2590 offers Spanning Tree Protocol support for greater efficiency and to avoid broadcast storms when used in WDS mode.
Network administrators have multiple options for managing the DAP-2590 including Web (HTTP), Secure Sockets Later (SSL, which provides for a secure connection to the Internet), Secure Shell (SSH, which provides for a secure channel between local and remote computers), and Telnet (bi-directional, eight-bit byte oriented communications facility). For advanced network management, administrators can use the D-Link AP Manager II or D-View SNMPv3 management module to configure and manage multiple access points from a single location. In addition to a streamlined management process, the AP Manager II or D-View software provides network administrators with the means of verifying and conducting regular maintenance checks remotely, eliminating the need to send personnel out to physically verify proper operation.
With the selectable dual band functionality, PoE support, a plenum-rated chassis, extensive manageability, versatile operation modes, and solid security enhancements, the D-Link AirPremier N Dual Band PoE Access Point (DAP-2590) provides SMB environments with a business-class solution for deploying a wireless network in the workplace.
Limited Lifetime Warranty
D-Link offers a Limited Lifetime Warranty on the DAP-2590 wireless access point to further its commitment to product quality and long-term customer confidence.
For Business-Class Environments
• Selectable Dual Band Connectivity for Increased Network Capacity
• Rugged Metal Chassis
• Ideal for Indoor Deployments
• Plenum-rated Housing
Multiple Operation Modes
• Access Point
• Wireless Distribution System (WDS) / Bridge
• WDS with AP
• Wireless Client
High Performance Connectivity
• IEEE 802.11n Wireless
• Up to 300Mbps
Trusted Security Features
• WPA2™ - Enterprise/Personal
• WPA™ - Enterprise/Personal
• WPA2 - PSK/AES over WDS
• 64/128-bit WEP Encryption
• MAC Address Filtering
• Supports 802.3af Power over Ethernet
• Wall Mounting Brackets Included
• Web Browser (HTTP) & HTTPS
• SNMP v1, v2c, and v3
• AP Manager II
• D-View® 5.1 and 6.0
|Standards||• IEEE 802.11n |
• IEEE 802.11a
• IEEE 802.11g
• IEEE 802.3ab
• IEEE 802.3af
• IEEE 802.3u
• IEEE 802.3
|Network Management||• Command Line Interface |
• Secure (SSH) Telnet
• Web Browser Interface
• Secure HTTP (HTTPS)
• SNMP Support
• D-View Module
• Private MIB
• AP Manager II
|Security||• WPA™ – Personal |
• WPA– Enterprise
• WPA2™ – Personal
• WPA2 – Enterprise
• 64/128-bit WEP
• SSID Broadcast Disable
• MAC Address Access Control
|Wireless Frequency Range||• 2.4GHz to 2.4835GHz |
• 5.15GHz to 5.25GHz and 5.725GHz to 5.85GHz
|Operating Modes||• Access Point (AP) |
• WDS with AP
• WDS/Bridge (No AP Broadcast)
• Wireless Client
|Dipole Antenna Gain||• 4dBi @ 2.4 GHz |
• 6 dBi @ 5 GHz
|Maximum Transmit Output Power||• 15dBm @ 2.4 GHz |
• 17dBm @ 5 GHz
|Maximum Effective Isotropic Radiated Power (EIRP)||• 23.7dBm @ 2.4 GHz|
• 26.7dBm @ 5 GHz
|LEDs||• Power |
|Maximum Power Consumption||• 12.5 Watts|
|Operating Voltage||• 48VDC +/- 10% for PoE or 5V 2.5A|
|Temperature||• Operating: 32 ºF to 104ºF (0ºC to 40ºC) |
• Storing: -4ºF to 149ºF (-20ºC to 65ºC)
|Humidity||• Operating: 10%~90% (non-condensing) |
• Storing: 5%~95% (non-condensing)
|Certifications||• FCC Class B |
|Weight||• 1.7 lbs (762g)|
|Dimensions (WxHxD)||• 6.5” x 1.7” x 7.3” (165mm x 43mm x 185mm)|
|Warranty||• Limited Lifetime2|
All references to speed and range are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
- 1 Maximum wireless signal rate derived from IEEE Standard 802.11g, 802.11a, and 802.11n specifications. Actual data throughput will vary. Network conditions and environmental factors, including volume of network traffic, building materials and construction, and network overhead, lower actual data throughput rate. Environmental factors will adversely affect wireless signal range.
- 2 Limited Lifetime Warranty available only in the USA and Canada if purchased on or after October 1, 2010.
D-Link, an industry pioneer in wireless networking, introduces a solution for businesses seeking to deploy next generation draft 802.11n LANs. D-Link unveils its new AirPremier N Dual Band PoE Access Point (DAP-2590), designed specifically for business-class environments such as large or enterprise corporations to provide secure and manageable dual band wireless LAN options for network administrators.
|Wireless LAN Standard:||IEEE 802.11n|
|ISM Minimum Frequency:||2.40 GHz|
|ISM Maximum Frequency:||2.48 GHz|
|UNII Minimum Frequency:||5.15 GHz|
|UNII Maximum Frequency:||5.85 GHz|
|Total Number of Antennas:||3|
|Wireless Transmission Speed:||300 Mbps|
|Gigabit Ethernet Port:||Yes|
|Number of Network (RJ-45) Ports:||1|
|PoE (RJ-45) Port:||Yes|
|Input Voltage:||48 V DC|
|Form Factor:||Wall Mountable|
|Weight (Approximate):||1.70 lb|
Multiple Operation Modes:
|Limited Warranty:||1 Year|
Product images may differ from actual product appearance.
