Click to enlarge
free shipping
Item #:
N-71989
Category:
Networking
Availability:
Special Order
Packaging:
Retail Packaging
Platform:
Windows
Condition:
New
Brand:
Transition Networks
Your Price: $247.67
Add To Cart

Product Rating

(0 Ratings) Write a Review

General Information

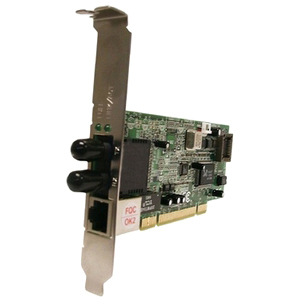

The NDM-FTX-SB201-01 Dual Media NIC provides both a 10/100BASE-TX copper port and a 100BASE-FX fiber port to allow ultimate flexibility for installation in both new and legacy LAN environments.

Interfaces/Ports
Host Interface:PCI
Total Number of Ports:2
Network (RJ-45):Yes
Number of Network (RJ-45) Ports:1
Number of SC Ports:1

Media & Performance
Twisted Pair Cable Standard:Category 5

Network & Communication
Network Technology:100Base-FX
Network Technology:10/100Base-TX

Physical Characteristics
Form Factor:Plug-in Card
Width:7.1"
Thickness:900.0 mil

Miscellaneous
Additional Information:
  • IP multicast filter
  • 1310nm TX / 1550nm RX single fiber single mode

    • Boot Server Support:

  • Novell RPL Boot ROM
  • PXE Boot ROM

    • Fiber Optic Connector Specs:

  • Single Fiber Single Mode:
    • Min TX PWR: -14 dBm
    • Max TX PWR: -8 dBm
    • RX Sensitivity: -32 dBm
    • Max In PWR: 0 dBm
    • Link Budget: 18.00 dB
    Device Supported:PC
    Certifications & Standards:
  • PCI 2.1, 2.2

    • IEEE:

  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.1P
  • IEEE 802.1Q

    • Regulatory Compliance:

  • FCC Class A Part 15
  • CE Mark
    • Platform Supported:PC

    Warranty
    Limited Warranty:Lifetime



    Product images may differ from actual product appearance.
    Be the first to review this product. Write a Review
    Shipping Restrictions
    • This item cannot be shipped to PO Boxes.
    • This item can be shipped only within the U.S.

    Special Order Item

    This item ships directly from the manufacturer and is not stocked in our warehouse. If stock is available at the manufacturer, the item will ship directly to you, usually within 7 - 15 business days.

    Once the order has been sent to the manufacturer it can no longer be canceled.

    If payment is made via credit card it will be charged before the order is sent to the manufacturer.

    You must contact the manufacturer directly regarding returns and defective items.

    We will contact you by email if the item is sold out or backordered (and we were unable to update the site before you placed the order) or if the item will be delayed longer than expected.

    We have no control over the speed of the manufacturer's order processing, or whether they will honor your request to ship the item by any particular method.



    • UPC: 648177015894
    • Mfr's Part #: NDM-FTX-SB201-01
