Click to enlarge
free shipping
Item #:
N-61834
Category:
Storage Devices
Availability:
Item is in stock
Packaging:
Retail Packaging
Platform:
Windows
Condition:
New
Brand:
EMC Hbas Switches
Your Price: $1018.63
Add To Cart

Product Rating

(0 Ratings) Write a Review

General Information

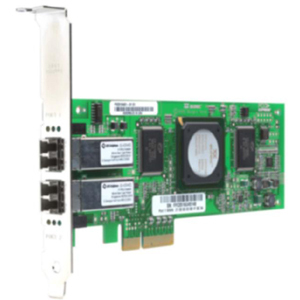

The SANblade QLE2462 Dual Port Fiber Channel Host Bus Adapter is the industry's first, true enterprise class HBA. The QLE2462 not only delivers unprecedented levels of performance and availability, but also intelligent networking features specific to enterprise class data centers.

Technical Information
Ports/Channels:2 x LC Fibre Channel
Host Interface:PCI Express x4
Fabric Supported:F_Port
Fabric Supported:FL_Port
Fabric Supported:N_Port
Fabric Supported:NL_Port
Topology:Point-to-Point
Topology:Arbitrated Loop
Topology:Switched Fabric
Fibre Channel Class Supported:Class 2
Fibre Channel Class Supported:Class 3

Media & Performance
Connectivity Media:Multi-mode Fiber
Data Transfer Rate:4.24 Gbps Fibre Channel Full-duplex
Distance Supported:1640.42 ft 50/125 µm @ 1 Gbps
Distance Supported:984.25 ft 62.5/125 µm @ 1 Gbps
Distance Supported:984.25 ft 50/125 µm @ 2 Gbps
Distance Supported:492.13 ft 62.5/125 µm @ 2 Gbps
Distance Supported:492.13 ft 50/125 µm @ 4 Gbps
Distance Supported:229.66 ft 62.5/125 µm @ 4 Gbps

Management & Protocols
Protocols:SCSI-FCP
Protocols:FC-IP
Protocols:FC-Tape
Protocols:FC-PH
Protocols:FC-PH3
Protocols:FC-PH2
Protocols:FC-FLA
Protocols:FC-AL-2
Protocols:FCP-2
Protocols:FC-GS-3
Protocols:FC-FS
Protocols:FC-PLDA
Protocols:FC-GS-2
Management:FC HBA Manager

Memory
Standard Memory:1 MB SRAM Per Port
Standard Memory:1 MB Flash
Standard Memory:2 KB NVRAM

Controls/Indicators
Status Indicators:Real-time status and link activity information: Three LEDs per port

Power Description
Power Consumption:6.50 W

Environmental Conditions
Temperature:32°F (0°C) to 131°F (55°C) Operating
Temperature:-4°F (-20°C) to 158°F (70°C) Storage
Humidity:10% to 90% Non-condensing Relative Humidity Operating
Humidity:5% to 95% Storage

Physical Characteristics
Form Factor:Plug-in Card
Height:2.7"
Width:6.6"

Miscellaneous
Additional Information:
  • Auto-negotiation
  • 150,000 IOPS per port
  • End-to-end data integrity using T10 CRC
  • Intelligent interleaved DMA support
  • Out-of-order frame reassembly (OoOFR)
  • 2,048 concurrent logins and 2,048 active exchanges per port
    • Compatibility:

    Hardware Platforms:

  • IA32
  • IA64
  • IEM64T
  • AMD Opteron64
  • Sun SPARC
  • Apple G5 Power Mac

    • Operating Systems:

  • Microsoft Windows 2000
  • Microsoft Windows Server 2003
  • Microsoft Windows XP Professional
  • Novell NetWare 6.x
  • SunSoft Solaris 9
  • SunSoft Solaris 10
  • SuSE Linux Enterprise Server 8
  • SuSE Linux Enterprise Server 9
  • Red Hat Enterprise Linux AS 3
  • Red Hat Enterprise Linux AS 4
  • Linux Red Hat AS 3.0
  • Linux Red Hat AS 4.0
  • Mac OS X
    • Certifications & Standards:
  • CE
  • FCC
  • UL
  • cUL
  • TUV
  • BSMI
  • CNS 13438 Class A



    • Product images may differ from actual product appearance.
    Be the first to review this product. Write a Review
    Shipping Restrictions
    • This item cannot be shipped to PO Boxes.
    • This item can be shipped only within the U.S.


    • UPC: 783386001815
    • Mfr's Part #: QLE2462-E-SP
