Click to enlarge
free shipping
Item #:
N-59893
Category:
Hardware
Availability:
Item is in stock
Packaging:
Retail Packaging
Platform:
Windows
Condition:
New
Brand:
Gefen
Your Price: See price in cart
Add To Cart

Product Rating

(0 Ratings) Write a Review

General Information

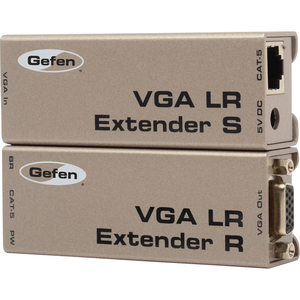

The VGA Extender allows users to extend video signals beyond the A/V rack. The VGA Extender Series can be used to extend an analog signal to cover distances up to 330 feet. Industry standard Category 5e (CAT-5e) cable is used for the extension.

Technical Information
Connectivity Technology:Wired
Number of Input Devices Supported:1
Number of Output Devices Supported:1
Maximum Operating Distance:330 ft

Video
Graphics Modes:VGA
Graphics Modes:WUXGA
Maximum Video Resolution:1920 x 1200

Media & Performance
Media Type Supported:Twisted Pair
Twisted Pair Cable Standard:Category 5

Power Description
Input Voltage:5 V DC

Physical Characteristics
Height:1.0"
Width:1.0"
Depth:4.0"

Miscellaneous
Package Contents:
  • VGA Extender LR sender unit
  • VGA Extender LR receiver unit
  • 5 VDC power supply
  • VGA M-F cables (6FT)
  • User Manual
Additional Information:
  • Actual Bandwidth: 120 MHz
  • Input Video Signal: 1.2 volts p-p
  • Input Sync Signal: 5 volts p-p (TTL)
  • Horizontal Frequency Range: 15-70 KHz
  • Vertical Frequency Range: 30 - 170 Hz
  • Power Consumption: 5 watts (max.)
Certifications & Standards:

RoHS

Green Compliant:Yes
Green Compliance Certificate/Authority:RoHS

Warranty
Limited Warranty:1 Year Limited



Product images may differ from actual product appearance.
Be the first to review this product. Write a Review
Shipping Restrictions
  • This item cannot be shipped to PO Boxes.
  • This item can be shipped only within the U.S.


  • UPC: 845344000008
  • Mfr's Part #: EXT-VGA-141LR
