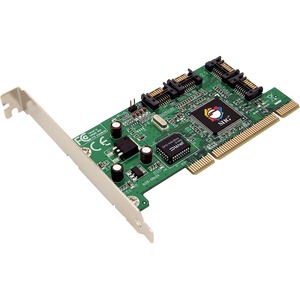

Click to enlarge
free shipping
Item #:
N-59830
Category:
Adapters
Availability:
Item is in stock
Packaging:
Retail Packaging
Platform:
Windows
Condition:
New
Brand:
SIIG
Your Price: $69.65
Add To Cart

Product Rating

(0 Ratings) Write a Review

General Information
  • Easily add Serial ATA RAID (0, 1, 0+1) speed and security
  • Supports RAID 0 (stripping), RAID 1(mirroring) and RAID 0+1 (striping & mirroring) for performance and reliability
  • Thin, flexible Serial ATA cables make it easier to route inside a PC
  • Breaks the 137GB barrier! Supports various brands of large capacity Serial ATA hard drives

Technical Information
Host Interface:PCI
Data Transfer Rate:Up to 1.17 Gbps
Drive Supported:Up to 4 x Serial ATA/150
Drive Type:Serial ATA/150
Platform Supported:PC

Interfaces/Ports
Ports:4 x 7-pin Serial ATA Serial ATA/150 Serial ATA (7-pin) Internal

Physical Characteristics
Form Factor:Low-profile Plug-in Card

Miscellaneous
Package Contents:
  • Serial ATA 4-channel RAID
  • Four Serial ATA cables
  • Two Dual-connector SATA power cables
  • Two "Y" split power cables
  • Driver and utility software
  • User' manual
Additional Information:
  • Regulatory approval(s): FCC Class B (DoC) & CE
  • Port type: Four Serial ATA ports
  • Slot type: 32-bit PCI
  • Compliant with Serial ATA Specification, revision 1.0
  • Compliant with PCI Specification, revision 2.2
  • Supports RAID 0 (striping), RAID 1 (mirroring) and RAID 0+1 (striping & mirroring)
  • Coexists with Ultra ATA controller and allows you to connect up to four Serial ATA hard disks
  • Features independent 256-byte FIFOs per channel for host reads and writes
  • Features Watch Dog timer for fault resiliency and flash memory for future BIOS updates
  • Supports 32-bit wide PCI bus at 66MHz data transfer rates up to 150 MB/s (1.5Gb/s)
  • Lower pin count and voltage requirement, plus better cabling over traditional Parallel ATA make Serial ATA the controller of the future
  • Four high quality SATA cables and two dual connector SATA power cables required for RAID configuration are included. Two "Y" split power cable is also included to provide extra power connection!
System Requirements:
  • Pentium or equivalent PC with one available PCI slot
  • Windows 98SE/ME/NT4.0/2000/XP/Vista (32-bit & 64-bit)
Certifications & Standards:FCC Class B, CE, RoHS
Green Compliant:Yes
Green Compliance Certificate/Authority:RoHS

Warranty
Limited Warranty:Lifetime



Product images may differ from actual product appearance.
Be the first to review this product. Write a Review
Shipping Restrictions
  • This item cannot be shipped to PO Boxes.
  • This item can be shipped only within the U.S.


  • UPC: 662774000053
  • Mfr's Part #: SC-SA4R12-S2
