Click to enlarge
free shipping
Item #:
N-58912
Category:
Adapters
Availability:
Item is in stock
Packaging:
Retail Packaging
Platform:
Windows
Condition:
New
Brand:
SIIG
Your Price: $50.50
Add To Cart

Product Rating

(0 Ratings) Write a Review

General Information

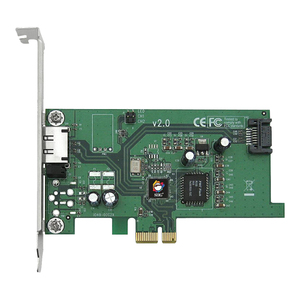

SIIG's eSATA II PCIe i/e controller card is designed to add two SATA channels (one internal and one external) for connecting up to two additional SATA hard disk drives. The eSATA II PCIe i/e controller card features the latest eSATA connector, delivers data transfer rates of up to 3.0Gb/s, and supports 48-bit LBA for drives with capacity larger than 137GB. Additional features include independent command fetch, scatter/gather, command execution, Native Command Queuing (NCQ), Non-zero offsets NCQ, Out-of-order data delivery NCQ, and hard disk hot-plugging ensure fast and reliable data transfers.

The eSATA II PCIe i/e controller card comes with the included spare low profile bracket for installing into either standard height or low profile system chassis. It is fully compatible with a wide variety of Windows operating systems and is backed by SIIG's limited lifetime warranty.

Technical Information
Host Interface:PCI Express x1
Data Transfer Rate:Up to 2.34 Gbps
Drive Supported:Up to 2
Drive Type:Serial ATA/300

Interfaces/Ports
Ports:1 x 7-pin Serial ATA/300 Serial ATA Internal
Ports:1 x 7-pin Serial ATA/300 External SATA External

Physical Characteristics
Form Factor:Plug-in Card

Miscellaneous
Package Contents:
  • eSATA II PCIe i/e Adaptor
  • Spare enhanced low profile bracket
  • Serial ATA cable
  • Serial ATA power cable
  • Driver CD
  • User's manual
    • Additional Information:
  • Compliant with PCI Express Base Specification Revision 1.0a
  • Compliant with Serial ATA 1.0a specification with support for complement of SATA II optional features
  • Compliant with eSATA (external SATA) connector specification
  • Installs in any available PCI Express slot and supports data transfer rates up to 3.0Gbps (300MBps)
  • Supports 48-bit LBA for drives with capacity larger than 137GB
  • Integrated Serial ATA Link and PHY logic
  • Supports two independent Serial ATA channels
  • Supports Native Command Queuing (NCQ), Non-zero offsets NCQ, and Out-of-order data delivery NCQ
  • Independent command fetch, scatter/gather, and command execution
    • System Requirements:
  • PCI Express-enabled system with an available PCI Express slot
  • Windows 2000
  • Windows XP
  • Windows Server 2003
    • Certifications & Standards:
  • RoHS
  • FCC Class B (DoC)
  • CE
    • Green Compliant:Yes
    Green Compliance Certificate/Authority:RoHS

    Warranty
    Limited Warranty:Lifetime



    Product images may differ from actual product appearance.
    Be the first to review this product. Write a Review
    Shipping Restrictions
    • This item cannot be shipped to PO Boxes.
    • This item can be shipped only within the U.S.


    • UPC: 662774025551
    • Mfr's Part #: SC-SAE212-S2
