Click to enlarge
free shipping
Item #:
N-57562
Category:
Adapters
Availability:
Item is in stock
Packaging:
Retail Packaging
Platform:
Windows
Condition:
New
Brand:
Promise Technology
Your Price: $70.75
Add To Cart

Product Rating

(0 Ratings) Write a Review

General Information

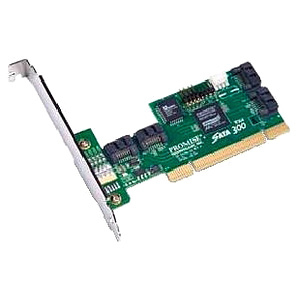

The 4-port Promise SATA300 TX4 SATA controller offers a low-cost solution for connecting up to four of the latest, high-performance SATA 3Gb/s disk drives to PC motherboards with a PCI interface. While drive capabilities continue to advance at a fast rate, the vast majority of available motherboards still use the PCI interface to connect peripheral devices. With the SATA300 TX4, users can benefit from a flexible solution that connects the most advanced drives to their existing system, the ideal future-proofing upgrade.

Technical Information
Host Interface:PCI
Data Transfer Rate:Up to 2.34 Gbps
Drive Supported:Up to 4 x Serial ATA/300
Drive Type:Serial ATA/300
Platform Supported:PC

Interfaces/Ports
Ports:4 x 7-pin SATA Serial ATA/300 Serial ATA

Environmental Conditions
Temperature:32°F (0°C) to 122°F (50°C) Operating
Humidity:5 to 95% Non-condensing Relative Humidity

Physical Characteristics
Form Factor:Low-profile Plug-in Card
Dimensions:2.0" Height x 4.7" Width
Height:3.4"
Width:4.7"

Miscellaneous
Additional Information:
  • Supports Serial ATA tagged command queuing (TCQ)
  • Serial ATAPI Support
  • Supports drives larger than 137GB
  • Supports up to 4 Serial ATA devices
  • Supports up to 300MB/sec* transfers with CRC error-checking
  • Native Command Queuing (NCQ)
  • Staggered Drive Spin-Up
  • HDD Activity Indication

    • Onboard BIOS:

  • Auto-identifies and configures drive and device types
  • BBS Compliant; Flash-Upgradeable
    • * 300 MB/sec reflects the drive interface speed. Actual data transfer depends on drive make, motherboard, and PCI bus speed.
    Compatibility:

    Supported Operating Systems:

  • Windows 2000
  • Windows Server 2003
  • Windows XP
  • Red Hat Linux
  • SuSE Linux
  • Linux open source code



    • Product images may differ from actual product appearance.
    Be the first to review this product. Write a Review
    Shipping Restrictions
    • This item cannot be shipped to PO Boxes.
    • This item can be shipped only within the U.S.


    • UPC: 704118008711
    • Mfr's Part #: SATA300 TX4
