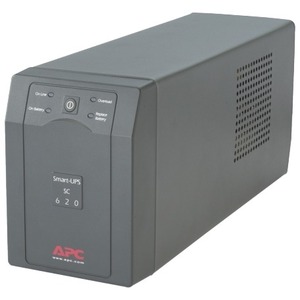

APC Smart-UPS SC 620VA - 620VA/390W - 5.5 Minute Full Load
APC Smart-UPS SC 620VA - 620VA/390W - 5.5 Minute Full Load
Click to enlarge
free shipping
Item #:
N-55671
Category:
UPS
Availability:
Item is in stock
Packaging:
Retail Packaging
Platform:
Windows
Condition:
New
Brand:
APC - American Power Conversion Corp.
Your Price: $154.96
Add To Cart

Product Rating

(0 Ratings) Write a Review

General Information

Smart-UPS protects your data by supplying reliable, network grade power in either traditional Tower or Rack-optimized form factors for space constrained business critical applications. Award winning APC Smart-UPS is the perfect UPS for protecting business critical fileservers (Intel or UNIX based), minicomputers, network switches and hubs, Point of Sale, retail/bank back office and ATM's.

Technical Information
Plug/Connector Type:NEMA 5-15P
Receptacles:4 x NEMA 5-15R
Dataline Protection:RJ-45 10/100Base-TX/Modem/Fax/DSL

Power Description
Load Capacity:620 VA/390 W
Input Voltage:110 V AC
Input Voltage Range:120 V AC Nominal
Input Voltage Range:75 V AC to 154 V AC Adjustable Mains Operation
Input Voltage Range:82 V AC to 144 V AC Mains Operation
Output Voltage:120 V AC Nominal
Frequency:50 Hz
Frequency:60 Hz
Surge Energy Rating:412 J
Filtering:Full time multi pole noise filtering, 0.3% IEEE surge let through, zero clamping response time

Management
Network Management:Optional
Overload Protection:
  • Resettable circuit breakers
Alarm:On Battery
Alarm:Low Battery
Emergency Power OFF:Optional
Battery Management:Intelligent Battery Management

Controls/Indicators
Status Indicators:

LED status display with:

  • On Line
  • On Battery
  • Replace Battery
  • Overload indicators

Interfaces/Ports
Interfaces/Ports:DB-9 RS-232 Serial
Modular Slots:SmartSlot

Battery Information
Batteries:Maintenance-free Sealed Lead Acid Hot-swappable
Backup/Run Time:0.09 Hour 390 W Full Load
Backup/Run Time:0.26 Hour 195 W Half Load

Environmental Conditions
Temperature:32°F (0°C) to 104°F (40°C) Operating
Temperature:5°F (-15°C) to 113°F (45°C) Storage
Humidity:0 to 95% Relative Humidity Storage
Humidity:0 to 95% Relative Humidity Operating
Altitude:0 ft to 10000 ft Operating
Altitude:0 ft to 50000 ft Storage
Thermal Dissipation:70 BTU/h

Physical Characteristics
Color:Gray
Height:7.0"
Width:5.0"
Depth:15.0"
Power Cord/Cable:6 ft
Weight (Approximate):27.00 lb

Miscellaneous
Package Contents:
  • APC Smart UPS SC 620VA 120V
  • CD with software
  • Smart UPS signalling RS-232 cable
  • User Manual
Additional Information:
  • Units per Pallet: 40
  • Boost and Trim Automatic Voltage Regulation (AVR)
  • Adjustable voltage sensitivity
  • Adjustable voltage transfer points
  • Automatic self test
  • Cold start capable
  • Serial Connectivity
  • Safety agency approved
Certifications & Standards:
  • CSA
  • FCC Part 15 Class B
  • NOM,
  • UL 1778
  • Meets UL 1449

Warranty
Limited Warranty:2 Year
Parts Warranty/Labor:2 Year



Product images may differ from actual product appearance.
Be the first to review this product. Write a Review
Shipping Restrictions
  • This item cannot be shipped to PO Boxes.
  • This item can be shipped only within the U.S.


  • UPC: 731304222620
  • Mfr's Part #: SC620
