Click to enlarge
free shipping
Item #:
N-54578
Category:
Accessories
Availability:
Item is in stock
Packaging:
Retail Packaging
Platform:
Windows
Condition:
New
Brand:
Startech.com
Your Price: $127.44
Add To Cart

Product Rating

(0 Ratings) Write a Review

General Information

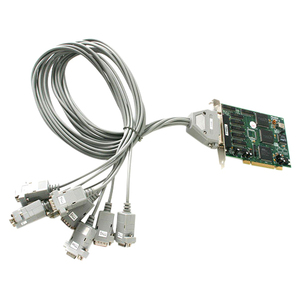

This high speed 16950 Serial PCI Card uses a 16 Byte buffer simultaneously in both transmit and receive channels, reducing the number of CPU interrupts while improving system performance._x000D_ The card lets you connect up to 8 RS-232 serial devices to the host computer, and can be installed in either a 3.3V or 5V PCI/PCI-X slot._x000D_ Ideally suited to industrial applications, the buffered Serial PCI card is compatible with a broad range of operating systems, including Windows, DOS, Linux, and Unix operating environments._x000D_ Backed by Lifetime Warranty.

Technical Information
Host Interface:PCI
Data Transfer Rate:Up to 921.60 Kbps
Protocols:RS-232
Platform Supported:PC

Interfaces/Ports
Ports:1 x 37-pin DB-37 Female
Ports Expandability:8 x 9-pin DB-9 Male RS-232 - Serial, Via Cable (Optional)

Power Description
Input Voltage:5 V DC
Input Voltage:12 V DC
Input Voltage:-12 V DC
Input Current:460 mA @ 5 V DC
Input Current:100 mA @ 12 V DC
Input Current:100 mA @ -12 V DC

Physical Characteristics
Form Factor:Full-length Plug-in Card
Dimensions:4.1" Height x 5.7" Width
Height:4.1"
Width:5.7"

Miscellaneous
Additional Information:
  • Works with both 3.3 volt and 5 volt server slots
  • Designed for critical applications using embedded systems and computer based machinery
  • Ideal for use in commercial and industrial applications such as POS networks, ATMs, and bank teller stations

    • Data Signals:

  • RS-232: F.G., TXD, RXD, RTS, CTS, DSR, DTR, DCD, & Signal ground

    • Expansion Cable:

  • 1 x 37-pin (male)
  • 8 x 25-pin (male)
    • Compatibility:
  • PCI Bus Version 2.2 compliant

    Operating System:

  • Windows 95
  • Windows 98
  • Windows 98SE
  • Windows 2000
  • Windows NT
  • Windows XP
  • Linux
  • Unix SCO Open Server
    • Certifications & Standards:
  • Safety Standards Europe CE
  • Safety Standards International UL
  • Safety Standards North America FCC
    • Cable Information:DB-25 Male 4 ft Fan-out Cable

    Warranty
    Limited Warranty:2 Year



    Product images may differ from actual product appearance.
    Be the first to review this product. Write a Review
    Shipping Restrictions
    • This item cannot be shipped to PO Boxes.
    • This item can be shipped only within the U.S.


    • UPC: 065030804370
    • Mfr's Part #: PCI8S9503V
