Click to enlarge
free shipping
Item #:
N-52759
Category:
Adapters
Availability:
Item is in stock
Packaging:
Retail Packaging
Platform:
Macintosh
Condition:
New
Brand:
Sonnet Technologies
Your Price: $65.40
Add To Cart

Product Rating

(0 Ratings) Write a Review

General Information

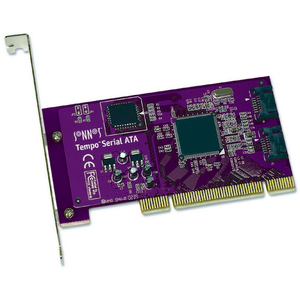

Sonnet's Tempo Serial ATA PCI adapter card enables you to connect the latest Serial ATA (SATA) and parallel* hard drives to your older Macintosh computer. Take advantage of the higher data transfer rates and improved cabling performance that SATA offers. Watch your data fly at up to 1.5 Gbps without sacrificing integrity! Just install this card into your PCI slot and make the switch to Serial ATA.

* IDE to Serial ATA converter required for parallel ATA drives and ATAPI devices.

Technical Information
Host Interface:PCI
Data Transfer Rate:Up to 1.17 Gbps
Drive Supported:Up to 2 x Serial ATA/150
Drive Type:Serial ATA (7-pin)
Drive Type:Ultra ATA/133 (ATA-7)
Drive Type:Ultra ATA/100 (ATA-6)
Drive Type:Ultra ATA/66 (ATA-5)
Drive Type:Ultra ATA/33 (ATA-4)
LBA Supported:48 bit - support for drives larger than 137GB

Interfaces/Ports
Ports:2 x Serial ATA (7-pin) Internal

Power Description
Input Voltage:5 V DC 5%

Environmental Conditions
Temperature:41°F (5°C) to 131°F (55°C) Operating
Temperature:-13°F (-25°C) to 50°F (10°C) Non-operating
Humidity:20 to 80% Relative Humidity Operating
Humidity:15 to 90% Relative Humidity Non-operating

Physical Characteristics
Form Factor:Plug-in Card

Miscellaneous
Package Contents:
  • 1 x Tempo Serial ATA 2-Port PCI Controller Card
  • 1 x Quick Start Guide
  • 1 x Serial ATA data interface cable
  • 1 x Drive mounting screws
    • Additional Information:
  • 7-pin SATA cable, either end of cable can be connected to the SATA hard drive or to the PCI host adapter
  • Flash-ROM upgradeable to latest firmware
  • Automatically identifies and configures drive types*
  • Automatically detects and supports devices utilizing many transfer modes including UltraDMA 6/5/4/3/2/1/0, PIO 4/3/2/1/0*

    • * IDE to Serial ATA converter required for parallel ATA drives and ATAPI devices

    Compatibility:
  • Mac Compatible Models
  • Power Macintosh Series 4400, 6400, 6500, 7200, 7215, 7220, 7300, 7500, 7600, 8200, 8500, 8515, 8600, 9500, 9500/180MP, 9515, 9600, 9600/200MP
  • Macintosh Server G3, G4
  • Power Macintosh G3 All-in-one, Blue & White, Desktop, Minitower
  • Power Mac G4*
  • Power Mac G5
  • Performa® Series 6400, 6410, 6420
  • Workgroup Server 7250, 7350, 8550, 9650
  • Daystar Genesis and Millennium Series
  • Mactell XB-Pro
  • Power Computing PowerBase Desktop and Tower, PowerCenter, PowerCenter Pro Desktop and Minitower, PowerCurve, PowerTower, PowerTower Pro, PowerWave
  • StarMax 3000, 3000 Minitower, 4000, 4000 Minitower, 5000, 5500
  • UMAX C500, C600, C600X, J700, S900

    • * Requires the removal of an internal CD-ROM or ZIP drive

    Certifications & Standards:
  • Fully compliant with Serial ATA 1.0a specification

    • Warranty
    Limited Warranty:3 Year Limited



    Product images may differ from actual product appearance.
    Be the first to review this product. Write a Review
    Shipping Restrictions
    • This item cannot be shipped to PO Boxes.
    • This item can be shipped only within the U.S.


    • UPC: 732311003325
    • Mfr's Part #: TSATA
