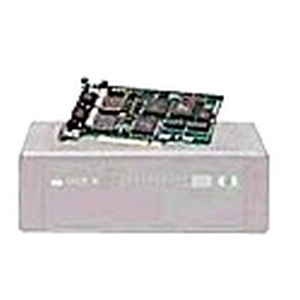

Click to enlarge
free shipping
Item #:
N-52136
Category:
Accessories
Availability:
Backordered
Packaging:
Retail Packaging
Platform:
Windows
Condition:
New
Brand:
Digi International
Your Price: $524.95

General Information
The AccelePort C/X host adapter includes a powerful on-board processor that can support up to 8 C/CON Concentrators, providing up to 128 ports from one slot on your server. With a wide range of platforms and operating environments, the C/X family of concentrators offer a choice of device driver software. Microsoft Windows NT, SCO UNIX, Linux, or AIX, The C/X Family provides all the support you need.

Technical Information
Host Interface:Universal PCI
Data Transfer Rate:Up to 3.7Mbps Full-duplex
UART Type:85C30
Protocols:EIA-232

Processor & Chipset
Processor:1 x IDT 3041 RISC

Interfaces/Ports
Ports Expandability:2 x 25-pin DB-25 Male RS-422 - Serial

Software
Software Included:
  • Most drivers ship with product on CD-ROM

    • Environmental Conditions
    Temperature:50 °F (10 °C) to 131 °F (55 °C) Operating
    Humidity:5 to 90% Relative Humidity Operating
    Altitude:0 ft to 12000 ft

    Physical Characteristics
    Form Factor:Plug-in Card
    Dimensions:0.6" Height x 4.2" Width x 6.9" Depth
    Shipping Dimensions:3.25" Height x 6.5" Width x 17.25" Depth
    Weight:0.3 lb
    Shipping Weight:2 lb

    Miscellaneous
    Additional Information:
  • 80186 processor on board in each concentrator
  • Pass-through fault tolerance
  • Surge protection on all EIA-232 ports
  • 128 K SRAM
  • Desktop or 19-inch rack chassis available
  • Front panel display for testing, debugging and monitoring concentrator performance
  • Two LEDs provide input and output flow control information for any port you select
  • Reporting capabilities include Activity Display, Line Utilization, Processor Utilization, Packet Count and Error Count
    • Compatibility:
  • PC
  • Unix

    Operating System:
  • Compaq OpenVMS & Tru64 UNIX
  • HP-UX
  • Linux
  • Microsoft Windows 2000, Windows XP & Windows NT
  • NCR UNIX MP-RAS
  • Novell NetWare
  • OS/2
  • SCO OpenServer
  • SCO UnixWare
  • Sun Solaris® x86
  • Sun Solaris SPARC
    • Certifications & Standards:
  • FCC Part 15, Class B
  • ICES-003, Class B
  • EN55022, Class B
  • AS3548
  • EN50082-2
  • UL 1950
  • CSA 22.2 No. 950
  • EN60950

    • Warranty
    Standard Warranty:5 Year



    Product images may differ from actual product appearance.
    Be the first to review this product. Write a Review
    Shipping Restrictions
    • This item cannot be shipped to PO Boxes.
    • This item can be shipped only within the U.S.


    • UPC: 663072911560
    • Mfr's Part #: 77000448
