Click to enlarge
free shipping
Item #:
N-52096
Category:
Accessories
Availability:
Backordered
Packaging:
Retail Packaging
Platform:
Windows
Condition:
New
Brand:
Digi International
Your Price: $1522.07

General Information

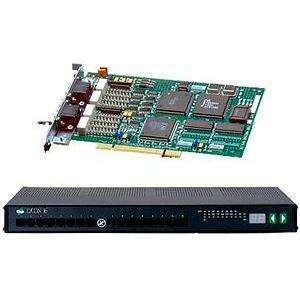

A single AccelePort C/X host PCI Universal (3.3V & 5V) adapter, which includes a powerful on-board processor, supports up to eight C/CON Concentrators, providing up to 128 surge-protected ports from a single slot on your server. A system start out with 16 ports and easily expand by adding C/CON concentrators. For ease of installation and optimum flexibility, the concentrators can be located up to 1,000 feet (305 meters) from the host server. A fiber optic cabling option allows you to locate your workgroups up to 1.25 miles (2 km) apart.

Technical Information
Host Interface:PCI
Data Transfer Rate:Up to 115.2Kbps
Protocols:RS-232
Platform Support:PC
Platform Support:Unix
Platform Support:Solaris

Processor & Chipset
Processor:IDT 3041 RISC

Interfaces/Ports
Ports Expandability:16 x RJ-45 RS-232 - Serial, Via Ports Module (Included)

Power Description
Input Voltage:3.3 V DC
Input Voltage:5 V DC 5%
Input Voltage:12 V DC 5%
Input Voltage:-12 V DC 5%
Input Current:0.01 A Typical @ -12V DC
Input Current:0.01 A Typical @ 12V DC
Input Current:0.9 A Typical @ 5V DC

Environmental Conditions
Temperature:10 °C (50 °F) to 55 °C (131 °F) Operating
Humidity:5 to 90% Relative Humidity
Altitude:0 ft to 12000 ft

Physical Characteristics
Form Factor:Plug-in Card
Dimensions:4.2" Height x 6.88" Width x 0.6" Thickness - PCI Host Adapter
Dimensions:1.75" Height x 11.5" Width x 17.5" Depth - RJ45 Rack
Weight:5.45 oz - PCI Host Adapter
Weight:7 lb - RJ45 Rack

Miscellaneous
Package Contents:
  • AccelePort C/X PCI Card with 16-port RS-232 RJ-45 Rack
  • 16-port RS-232 RJ-45 Rack
    • Additional Information:

    AccelePort C/X Host Adapters:

  • Hitachi 64570 serial communications controller
  • Supports up to 3.7 Mbps bi-directional transmission speeds

    • Rack:

  • 16 EIA-232 asynchronous channels with RJ-45 connectors
  • 80186 processor on board in each concentrator
  • Pass-through fault tolerance
  • Surge protection on all EIA-232 ports
  • 120 V or 240 V power supply included, 50-60 Hz (Universal)
  • Front panel display for testing, debugging and monitoring concentrator performance

    • AccelePort C/CON-16 Rack:

  • +12 V +/- 5% .18 Amps typical
  • -12 V +/- 5% .05 Amps typical

    • Compatibility:

    Supported Operating System:

  • AIX ( Requires P/N 70001385)
  • HP-UX
  • Linux
  • Microsoft Windows .NET Server 2003
  • Microsoft Windows XP
  • Microsoft Windows 2000
  • Microsoft Windows NT
  • Novell NetWare
  • OpenVMS
  • OS/2
  • QNX
  • SCO OpenServer
  • SCO UnixWare
  • SUN Solaris SPARC and Intel
  • Tru64 UNIX

    • Certifications & Standards:
  • FCC Part 15, Class B
  • ICES-003, Class B
  • EN55022, Class B
  • AS3548
  • EN50082-2
  • UL 1950
  • CSA 22.2 No. 950
  • EN60950

    • Warranty
    Standard Warranty:5 Year



    Product images may differ from actual product appearance.
    Be the first to review this product. Write a Review
    Shipping Restrictions
    • This item cannot be shipped to PO Boxes.
    • This item can be shipped only within the U.S.


    • UPC: 663072911652
    • Mfr's Part #: 70001175
