Click to enlarge
free shipping
Item #:
N-214955
Category:
Hardware
Availability:
Item is in stock
Packaging:
Retail Packaging
Platform:
N/A
Condition:
New
Brand:
SIIG
Your Price: $43.00
Add To Cart

Product Rating

(0 Ratings) Write a Review

General Information

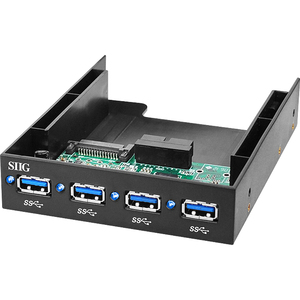

SIIG's 4-Port USB 3.0 Bay Hub via 20pin Header is an excellent drive bay product designed to add four front-accessible USB 3.0 ports to your USB 3.0 enabled system for convenient USB device connections. This USB 3.0 Bay Hub delivers ultra-fast USB 3.0 data transfer rates of up to 10 times faster than USB 2.0, offers full backward compatibility with USB 2.0 and 1.1 devices, and supports simultaneous operation of multiple USB 3.0, USB 2.0 and USB 1.1 devices. It also allows you to hot-swap USB devices (connect and disconnect) without first turning your system off. The USB 3.0 Bay Hub connects to your system's internal 20-Pin USB 3.0 Header and can be installed in any available 3.5" or 5.25" drive bay (with optional 5.25" adapter purchased separately).

The 4-Port USB 3.0 Bay Hub via 20pin Header is fully compliant with USB 3.0 Specification, Revision 1.0, FCC and CE regulatory approved and meets RoHS hazardous materials standards. Additionally, the USB 3.0 Bay Hub is fully compatible with a wide variety of Windows operating systems and backed by SIIG's limited 5 year warranty.

Technical Information
Host Interface:USB
Data Transfer Rate:Up to 5 Gbps USB 3.0 SuperSpeed
Platform Supported:PC

Processor & Chipset
Chipset:VIA VL811+

Interfaces/Ports
Ports:1 x 20-pin Male USB 3.0 - USB Upstream
Ports:4 x 9-pin Type A Female USB 3.0 - USB Downstream

Physical Characteristics
Color:Black
Height:2.4"
Width:3.8"
Depth:0.7"
Form Factor:Drive Bay Hot-swappable
Weight (Approximate):4.00 oz

Miscellaneous
Package Contents:
  • 4-Port USB 3.0 Bay Hub via 20pin Header
  • USB 3.0 Cable (20pin to 20pin header)
  • Installation Screws
  • User's Manual
Additional Information:
  • Add four front accessible SuperSpeed USB 3.0 ports to your desktop PC
  • Installs in any 3.5" computer front bay or 5.25" with an optional adapter (AC-DB0011-S1)
  • Connects with system via internal 20pin USB 3.0 header
  • Supports ultra-fast USB 3.0 data transfer rate of 5Gb/s and backward compatible with USB 2.0 & USB 1.1 devices
  • Supports simultaneous operation of multiple USB 3.0, 2.0 and 1.1 devices
  • Hot-swapping feature allows you to attach/detach devices without first powering your system off
  • Works with high-bandwidth USB 3.0 devices, such as external hard disks, camcorders, high resolution webcams, cameras, multi-channel audio and more
System Requirements:

Desktop or notebook PC with an available USB 3.0 20pin header

Operating System(s):

  • Windows 8 (32/64bit)
  • Windows XP (32/64 bit)
  • Windows Vista (32/64 bit)
  • Windows 7 (32/64 bit)
  • Windows Server 2008 R2 8 (32/64 bit)
  • Windows Server 2003 & 2008 (32-/64-bit)
Certifications & Standards:
  • FCC
  • CE
Assembly Required:No
Green Compliant:Yes
Green Compliance Certificate/Authority:RoHS
Country of Origin:China

Warranty
Limited Warranty:5 Year



Product images may differ from actual product appearance.
Be the first to review this product. Write a Review
Shipping Restrictions
  • This item cannot be shipped to PO Boxes.
  • This item can be shipped only within the U.S.


  • UPC: 662774015514
  • Mfr's Part #: JU-H40711-S1
