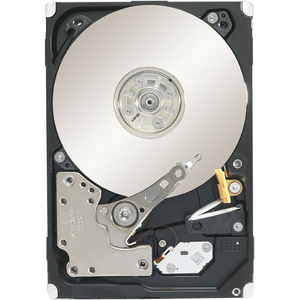

Seagate-IMSourcing Constellation.2 ST9250610NS 250 GB 2.5" Internal Hard Drive - SATA - 7200 rpm - 64 MB Buffer
free shipping
Item #:
N-213546
Category:
Hard Drives
Availability:
Item is in stock
Packaging:
Retail Packaging
Platform:
N/A
Condition:
New
Brand:
Seagate


Your Price: $117.50

Add To Cart

Product Rating

(0 Ratings) Write a Review


From the Manufacturer|Powered by Answers™

Thank You Is the information in this section helpful? Yes / No

Overview

  • Seagate® Constellation.2™ SATA 6Gb/s 250GB Hard Drive

    The Seagate® Enterprise Capacity 2.5 HDD (formerly Constellation.2™) is the only 2.5-inch enterprise-class hard drive delivering both 1TB capacities and enterprise reliability at the industry’s lowest power consumption for storage-hungry nearline applications. Self-Encrypting Drive (SED) and FIPS 140-2 Validated™ SED security options available to help you protect your data.

    • Maximizes data center footprint with up to 76TB per square foot
    • Energy efficient storage at under 3.9 watts (idle)
    • Highest nearline reliability with an MTBF of 1.4M hours
    • 6Gb/s performance in both SAS and SATA interfaces

Videos

Features

  • Unparalleled HDD Power Savings

    Enterprise Capacity 2.5 HDDs reduce per-gigabyte cooling and energy costs by packing high capacities into an SFF, low-power-consumption drive.

    Included Seagate® PowerChoice™ technology can further reduce energy costs by empowering IT organizations to tailor systems for optimal performance and power consumption. This results in power savings of up to 54% over traditional 3.5–inch drives, and  potentially operating at 1.1W when idle. PowerChoice is based on the T10-compliant power management standard.

  • Big Storage for Small Spaces

    Enterprise Capacity 2.5 HDDs can help you deploy additional enterprise storage without expanding your data center.

    With its 15mm z-height, the 1TB model is the first 2.5-inch hard drive capacity-optimized for dense, space-constrained data centers. This model can help you store twice as much data in the same footprint, supporting up to 76TB of storage per square foot. Also features for nearline storage:

    • Enterprise-class firmware and best-in-class rotational vibration tolerance maximize system availability and performance in multi-drive systems
    • Choose 6Gb/s SAS for improved data integrity, scalability over long distances and fastest data access
    • The SATA 6Gb/s interface is ideal for fast, economical nearline (Tier2) performance



  • Save Money with Secure Self-Encryption and Secure Erase

    Enterprise Capacity 2.5 HDD Self-Encrypting Drives (SED) are TCG-compliant and can improve data-at-rest security and reduce drive retirement costs. The SEDs meet regulatory data security compliance requirements and are FIPS 140-2 Validated™ to protect Sensitive but Unclassified and Protected class data.1

    Moreover, Seagate Instant SecureErase technology renders all data on the SED unreadable in less than a second. Learn more about Seagate secure disk erase deployment options

Images

Specifications

Additional
GenerationConstellation.2
Capacity250GB
InterfaceSATA 6Gb/s
Spindle Speed (RPM)7200RPM
Cache (MB)64MB
Storage TypeHDD
Areal Density417
Maximum Operating Shock70 / 40Gs
Maximum Length100.45mm
Maximum Width70.10mm
Maximum Height15.00mm
Typical Weight179g
AFR0.62 %
Operating Temperature60°C
Average Operating Power4.61W
  1. 1 Self-Encrypting Drives (SED) and FIPS 140-2 Validated drives are not available in all models or countries. See Seagate Encrypting Drives Import/Export Compliance. May require TCG-compliant host or controller support.

General Information

Bulk data storage in a small footprint.

The Seagate® Constellation.2™ drive is the only 2.5-inch enterprise-class hard drive delivering both 1TB capacities and enterprise reliability at the industry's lowest power consumption for storage-hungry nearline applications. Self-Encrypting Drive (SED) and FIPS 140-2 Validated™ SED security options available to help you protect your data.

  • Maximizes data center footprint with up to 76TB per square foot
  • Energy efficient storage at under 3.9 watts (idle)
  • Highest nearline reliability with an MTBF of 1.4M hours
  • 6Gb/s performance in both SAS and SATA interfaces

Technical Information
Storage Capacity:250 GB
Features:Low Power Consumption
Features:PowerChoice Technology
Features:Secure Erase
Features:Rotational Vibration Sensor

Drive Performance
Maximum External Data Transfer Rate:768 MBps (6 Gbps)
Rotational Speed:7200 rpm
Buffer:64 MB
Average Latency:4.16 ms

Interfaces/Ports
Drive Interface:SATA
Drive Interface Standard:SATA/600

Physical Characteristics
Drive Type:Internal
Drive Width:2.5"
Height:0.6"
Width:2.8"
Depth:4"
Weight (Approximate):6.31 oz

Miscellaneous
Certifications & Standards:

FIPS 140-2

Warranty
Additional Warranty Information:
  • Product does not ship from original manufacturer
  • Product may not be eligible for original manufacturer warranty, rebates or programs
  • Direct replacement warranty provided by Ingram Micro (1 year for components, 3 year for systems)
  • Product ships from IMSourcing facility within 2-3 days or from stock
  • Product may ship in non-standard packaging
  • All returns processed directly from IMSourcing
  • Product condition subject to availability
  • Replacement parts are from our Service inventory and meet our rigorous inspection and quality standards. Some will be new, some are manufacturer certified refurbished, some are considered 'as new' and have been tested, refurbished or remanufactured. All are fully warranted
  • Where applicable, -IM indicates an Ingram Micro certified pre-owned product



  • Product images may differ from actual product appearance.
    Be the first to review this product. Write a Review
    Shipping Restrictions
    • This item cannot be shipped to PO Boxes.
    • This item can be shipped only within the U.S.


    • UPC: 763649030516
    • Mfr's Part #: ST9250610NS
