From the Manufacturer
Description

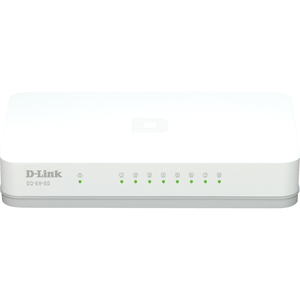

8 Port Unmanaged Gigabit Switch
The GO-SW-8G 8-Port Unmanaged Gigabit Switch is part of D-Link’s new series of SOHO devices that make use of D-Link’s Green Technology, providing energy savings, reduced heat, and a longer product life without sacrificing performance or functionality. An energy-efficient power adapter (EnergyStar Level V qualified), minimized use of harmful substances (RoHS compliant), and recyclable packaging make this switch truly environmentally friendly.
Product Highlights:
• Economical yet innovative fanless design runs cool and quiet
• Gigabit ports allow you to connect all your devices for fast file transfers and smooth media streaming
• Reduced energy consumption without sacrificing performance EEE compliance
Features
Conserves Energy
Environmentally Friendly
Gigabit Connection for Home and SOHO
Technical Details
• Built-in D-Link Green Technology
• Inexpensive Gigabit solution for Home/SOHO
• Eight 10/100/1000 Mbps Gigabit ports
• 16 Gbps switching fabric
• Auto MDI/MDIX crossover for all ports
• Secure store-and-forward switching scheme
• Full/half-duplex for Ethernet/Fast Ethernet speeds
• IEEE 802.3x Flow Control
• Supports 9,216 Byte Jumbo Frames
• RoHS compliant
• Plug-and-play installation
Package Contents
• 8 port Gigabit Desktop Switch
• Power Adapter
• Quick Install Guide
Minimum System Requirements
• Devices Supporting 802.3 Ethernet, 802.u Faster Ethernet, or
802.3ab Gigabit Ethernet
• Cat5 or better Ethernet Cable
• Network Interface Card for each computer
Specification
Technical Specifications | |
| Switching Fabric | • 16Gbps |
| Standards
| • IEEE 802.3 10BASE-T Ethernet (twisted-pair copper) • IEEE 802.3u 100BASE-TX Fast Ethernet (twisted-pair copper) • IEEE 802.3ab 1000BASE-T Gigabit Ethernet (twistedpair copper) • ANSI/IEEE 802.3 NWay auto-negotiation • IEEE 802.3x Flow Control • IEEE 802.3az Energy-Efficient Ethernet (EEE) |
| Protocol | • CSMA/CD |
| Data Transfer Rates
| • Ethernet: - 10 Mbps (half duplex), 20 Mbps (full duplex) • Fast Ethernet: - 100 Mbps (half duplex), 200 Mbps (full duplex) • Gigabit Ethernet: -2000 Mbps (full duplex) |
| Topology | • Star |
| Network Cables
| • 10BASE-T: - UTP CAT 3, 4, 5/5e (100 m max.) - EIA/TIA-586 100-ohm STP (100 m max.) • 100BASE-TX, 1000BASE-T: - UTP CAT 5/5e (100 m max.) - EIA/TIA-568 100-ohm STP (100 m max.) |
| Media Interface Exchange | • Auto MDI/MDIX adjustment for all ports |
| LED Indicators |
• Per port: Link/Activity/Speed • Per device: Power |
| Transmission Method | • Store-and-forward |
| MAC Address Table | • 8K |
| MAC Address Learning | • Automatic update |
| Packet Filtering/Forwarding Rates
| • Ethernet: 14,880 pps per port • Fast Ethernet: 148,800 pps per port • Gigabit Ethernet: 1,488,000 pps per port |
| RAM Buffer | • 128KB per device |
| Jumbo Frames | • 9,216 Bytes |
General Specifications | |
| DC Input | • External 5 V/1 A Level “V” Power Adapter |
| Power Consumption | • DC input: 3.06 watts • AC input: 3.9 watts |
| MTBF | • 412,433 hours |
| Operating Temperature | • 32 to 104 ˚F (0 to 40 ˚C) |
| Storage Temperature | • 14 to 158 ˚F (-10 to 70 ˚C) |
| Operating Humidity | • 10% to 90% RH non-condensing |
| Storage Humidity | • 5% to 90% RH non-condensing |
| Dimensions |
|
| Weight | • 6.88 ounces (195 grams) |
| Certifications
| • FCC Class B • ICES-003 Class B • CE Class B • C-Tick Class B • VCCI Class B • cUL/UL • CCC • Anatel • LVD |
Warranty | |
| Warranty | • 3-Year Limited1 |
1 3 Year Limited Warranty available only in the USA and Canada. All references to speed are for comparison purposes only. Product specifications, size and shape are subject to change without notice, and actual product appearance may differ from
that depicted herein.
Connect All of Your Devices with Gigabit Speed Expand your wired home network with the D-Link® 8-Port Unmanaged Gigabit Desktop Switch (GO-SW-8G). By connecting the GO-SW-8G to your router, you can add up to seven more computers to your home network with Fast Ethernet connectivity. Add devices like your gaming console, printer, print server, Network-Attached Storage (NAS) or network camera with a simple Ethernet cable. Compact Design This Desktop Switch fits virtually anywhere because of its compact size. Its power connector and ports are conveniently located in the rear to avoid messy cables on the desk. |
| Total Number of Network Ports: | 8 |
| Token Ring Port: | No |
| LRE Port: | No |
| Uplink Port: | No |
| Bypass: | No |
| Modular: | No |
| Management Port: | No |
| USB: | No |
| Stack Port: | No |
| Number of Network (RJ-45) Ports: | 8 |
| Media Type Supported: | Twisted Pair |
| Twisted Pair Cable Standard: | Category 5e |
| Ethernet Technology: | Gigabit Ethernet |
| Network Technology: | 10/100/1000Base-T |
| Layer Supported: | 2 |
| Manageable: | No |
| MTBF: | 412433 Hour |
| PoE (RJ-45) Port: | No |
| Input Voltage: | 5 V DC |
| Power Source: | AC Adapter |
| Redundant Power Supply: | No |
| Form Factor: | Desktop |
| Height: | 1.0" |
| Width: | 5.0" |
| Depth: | 2.7" |
| Weight (Approximate): | 6.88 oz |
| Package Contents: |
|
| Certifications & Standards: |
IEEE Standards:
|
| Green Compliant: | Yes |
| Green Compliance Certificate/Authority: | RoHS |
| Green Compliance Certificate/Authority: | WEEE |
| Green Compliance Certificate/Authority: | Energy Star |
| Limited Warranty: | 3 Year |
Product images may differ from actual product appearance.
- This item cannot be shipped to PO Boxes.
- This item can be shipped only within the U.S.
- UPC: 790069370687
- Mfr's Part #: GO-SW-8G
