Click to enlarge
free shipping
Item #:
N-211556
Category:
Hardware
Availability:
Item is in stock
Packaging:
Retail Packaging
Platform:
N/A
Condition:
New
Brand:
SIIG
Your Price: $41.85
Add To Cart

Product Rating

(0 Ratings) Write a Review

General Information

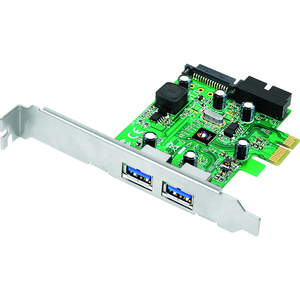

SIIG's DP 4-Port USB 3.0 PCIe with 20pin Header adds four (2 external & 2 internal) SuperSpeed USB 3.0 ports to your PCIe-enabled desktop computer. The two internal ports connect via 20-pin header for internal USB 3.0 connections. This adapter enhances existing computer system by enabling the latest USB 3.0 technology to deliver maximum data transfer rate of up to 5Gb/s to support high-bandwidth USB 3.0 devices. The DP 4-port USB 3.0 PCIe with 20pin Header is backward compatible with USB 2.0 and 1.1 devices and features dual-profile PCB design to work with full height and low profile systems with the included brackets.

The DP 4-Port USB 3.0 PCIe with 20pin Header is compliant with Universal Serial Bus 3.0 Specification and PCI Express Base Specification, Revision 2.0. It comes with FCC and CE regulatory approvals and RoHS compliancy, supports a wide variety of Windows operating systems and is backed by SIIG's limited lifetime warranty.

Technical Information
Host Interface:PCI Express 2.0
Data Transfer Rate:Up to 5 Gbps USB 3.0 SuperSpeed
Platform Supported:PC

Interfaces/Ports
Ports:2 x 9-pin Type A Female USB 3.0 - USB External
Ports:1 x 20-pin USB 3.0 - USB Header
Ports:1 x 15-pin SATA - Power Internal

Physical Characteristics
Color:Green
Height:3.4"
Width:4.7"
Thickness:790.0 mil
Form Factor:Internal
Weight (Approximate):1.92 oz

Miscellaneous
Package Contents:
  • DP 4-Port USB 3.0 PCIe with 20pin Header
  • Low Profile Bracket
  • Driver CD
  • User's Manual
Assembly Required:No
Green Compliant:Yes
Green Compliance Certificate/Authority:RoHS
Country of Origin:China

Warranty
Limited Warranty:Lifetime



Product images may differ from actual product appearance.
Be the first to review this product. Write a Review
Shipping Restrictions
  • This item cannot be shipped to PO Boxes.
  • This item can be shipped only within the U.S.


  • UPC: 662774015491
  • Mfr's Part #: JU-P40511-S1
