Click to enlarge
free shipping
Item #:
N-209820
Category:
Hardware
Availability:
Item is in stock
Packaging:
Retail Packaging
Platform:
N/A
Condition:
New
Brand:
Aten Technologies
Your Price: $1923.53
Add To Cart

Product Rating

(0 Ratings) Write a Review

General Information

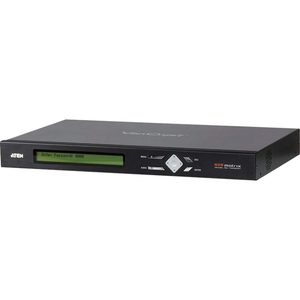

The ATEN VM0808T 8x8 Cat 5 A/V Matrix Switch is a versatile audio/video over Cat 5 + serial solution that offers an easy and affordable way to route any of 8 audio/video sources to any of 8 displays, in combination with the ATEN VE500 A/V Over Cat 5 Extender system.

With eight Cat 5 A/V input ports, the VM0808T allows you to connect eight source devices (via eight VE500T transmitters) to eight monitors, displays, or projectors (via eight VE500R / VE500RQ receivers) at the same time. In addition to the eight Cat 5 connections, the unit is also enabled with local audio/video inputs/outputs so that an extra source device and monitor located in the same rack as the VM0808T can function as a further transmitter and receiver.

Technical Information
Number of Input Devices Supported:8
Device Supported:Computer
Number of Displays Supported:8

Interfaces/Ports
VGA In:Yes
VGA Out:Yes
Serial Port:Yes
Connectivity (RJ-45):Yes
Number of Connectivity (RJ-45) Ports:16
Number of VGA Inputs:1
Number of VGA Outputs:1

Media & Performance
Media Type Supported:Twisted Pair

Physical Characteristics
Height:1.7"
Width:10.0"
Depth:17.0"
Weight (Approximate):7.72 lb

Miscellaneous
Package Contents:
  • VanCryst Matrix Video Switch
  • 1 x Power Cord
  • 1 x Rack Mount Kit
  • 1 x Grounding Wire
  • 3 x Terminal Blocks
  • 1 x User Manual
  • 1 x Quick Start Guide
    • Green Compliant:Yes
    Green Compliance Certificate/Authority:RoHS
    Green Compliance Certificate/Authority:WEEE



    Product images may differ from actual product appearance.
    Be the first to review this product. Write a Review
    Shipping Restrictions
    • This item cannot be shipped to PO Boxes.
    • This item can be shipped only within the U.S.


    • UPC: 672792002533
    • Mfr's Part #: VM0808T
