From the Manufacturer
Bulk data storage in a small footprint.
The Seagate® Constellation.2™ drive is the only 2.5-inch enterprise-class hard drive delivering both 1TB capacities and enterprise reliability at the industry’s lowest power consumption for storage-hungry nearline applications. Self-Encrypting Drive (SED) and FIPS 140-2 Validated™ SED security options available to help you protect your data.
- Maximizes data center footprint with up to 76TB per square foot
- Energy efficient storage at under 3.9 watts (idle)
- Highest nearline reliability with an MTBF of 1.4M hours
- 6Gb/s performance in both SAS and SATA interfaces
Unparalleled power savings.
Constellation.2 hard drives reduce per-gigabyte cooling and energy costs by packing high capacities into an SFF, low-power-consumption drive.
Included Seagate® PowerChoice™ technology can further reduce energy costs by empowering IT organizations to tailor systems for optimal performance and power consumption.
Big storage for small spaces.
Constellation.2 hard drives can help you deploy additional enterprise storage without expanding your data center.
With its 15mm z-height, the 1TB model is the first 2.5-inch hard drive capacity-optimized for dense, space-constrained data centers. This model can help you store twice as much data in the same footprint, supporting up to 76TB of storage per square foot.
Constellation.2 hard drives are available as Self-Encrypting Drive models. SED options can improve data-at-rest security and reduce drive retirement costs.
Meets regulatory data security compliance requirements and is FIPS 140-2 Validated™ to protect Sensitive but Unclassified and Protected class data.
Saves energy and money.
Constellation.2™ hard drives deliver the lowest power consumption in the industry.These hard drives also operate at just 3.9W when idle;which can be further reduced to an astounding 1.1W with enhanced PowerChoice™ technology options.
Purpose-built for enterprise environments, PowerChoice is based on the T10-compliant power management standard.This technology enables you to tailor the Constellation.2 hard drive’s settings for optimal performance and energy usage. The result: power savings of up to 54% over traditional 3.5–inch drives.
Simply put,Constellation.2 hard drives deliver the lowest power usage ever offered in an enterprise-class nearline drive–without any performance degradation.
Builds better solutions.
System integrators and IT professionals can leverage Constellation.2 hard drive features like these to build optimal data storage solutions:
- Enterprise-class firmware and best-in-class rotational vibration tolerance maximize system availability and performance in multi-drive systems
- Choose 6Gb/s SAS for improved data integrity, scalability over long distances and fastest data access
- The SATA 6Gb/s interface is ideal for fast, economical nearline (Tier2) performance
Self-encryption for optimal ROI.
The TCG-compliant, Self-Encrypting Drive1 option keeps data secure where it lives: on the hard drive.
Moreover, Seagate Instant SecureErase™ technology renders all data on the SED unreadable in less than a second. This feature eliminates the need to overwrite or physically destroy drives, allowing organizations to securely return, repurpose or sell their hard drives.
Perfect when you need to:
- Maximize capacity in servers and blade servers
- Build high-density direct attached storage (DAS); storage area networks (SAN); and network attached storage (Enterprise NAS)
- Store rich media content and centralized surveillance data
- Serve cloud-computing storage requirements
- Secure sensitive data at rest
- Simplify your drive life extension and drive retirement strategies
|Formatted Capacity||500 GB|
|Spindle Speed (RPM)||7200|
|Transfer Rate, Max Ext (MB/s)||600|
|Sustained Data Rate OD||115 MB/s|
|Average Latency (ms)||4.16|
|Nonrecoverable Read Errors per Bits Read||1in 1015|
|Annualized Failure Rate (AFR)||0.62 %|
|Idle, Typical Operating (W)||2.44|
|Operating||5° to 60°C|
|Non-operating||-40° to 70°C|
|Operating: Gs (ms)||70 / 40 (2ms)|
|Non-operating: Gs (ms)||400 (2ms)|
|Acoustics (bels - sound power)|
|Spindle Speed (RPM)||7200RPM|
|Maximum Operating Shock||70 / 40Gs|
|Average Operating Power||4.73W|
Seagate Constellation.2 drives are the most energy efficient enterprise drives on the market. Designed for enterprise robustness, Constellation.2 is available in capacities up to 1TB and offers reliable storage for high capacity servers and storage arrays in a minimal footprint.
|Storage Capacity:||500 GB|
|Maximum External Data Transfer Rate:||600 MBps (4.7 Gbps)|
|Rotational Speed:||7200 rpm|
|Average Seek Time:||9.50 ms|
|Average Latency:||4.16 ms|
|Drive Interface Standard:||SATA/600|
|Weight (Approximate):||7.05 oz|

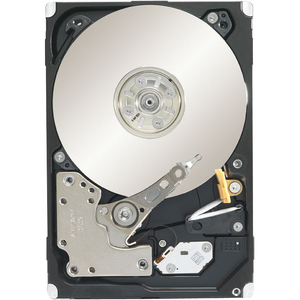

Product images may differ from actual product appearance.
