Related Products

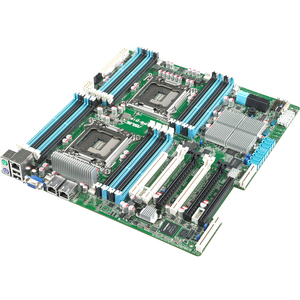

Asus Z9PE-D16/2L Server Motherboard - Intel C602-A Chipset - Socket R LGA-2011 - SSI EEB - 2 x Processor Support - 512 GB DDR3 SDRAM Maximum RAM - Serial ATA/300, Serial ATA/600 RAID Supported Controller - On-board Video Chipset - 6 x PCIe x16 Slot
free shipping
- Item #:
- N-203848
- Category:
- Motherboards
- Availability:
- Item is in stock
- Packaging:
- Retail Packaging
- Platform:
- N/A
- Condition:
- New
- Brand:
- Asus
General Information
| Innovative technologies deliver easy expandability, complete storage and high power efficiency The ASUS Z9PE-D16/2L serverboard provides an ideal foundation for reliable performance and future upgrades. Through innovative ASUS design, it offers high power efficiency of up to 90%, dual Intel® LAN ports with great virtualization support, and high I/O expandability. Users also obtain high manageability via the latest ASMB6, making this an ideal general purpose host server, AP server, mail server, and storage server. |
Processor & Chipset
| Chipset Manufacturer: | Intel |
| Chipset Model: | C602-A |
| Total Processor Supported: | 2 |
| Processor Technology: | Enhanced SpeedStep Technology |
| Processor Technology: | Hyper-Threading Technology |
| Processor Technology: | Turbo Boost Technology |
| Processor Technology: | Extended Memory 64 Technology |
| Processor Socket: | Socket R LGA-2011 |
| Processor Supported: | Xeon |
| QuickPath Interconnect: | 8 GT/s |
| 64-bit Processing: | Yes |
Memory
| Number of Memory Slots: | 16 |
| Memory Form Factor: | DIMM |
| Memory Form Factor: | LRDIMM |
| Memory Form Factor: | RDIMM |
| Memory Form Factor: | UDIMM |
| Maximum Memory: | 512 GB |
| Memory Standard: | DDR3-1600/PC3-12800 |
| Memory Standard: | DDR3-1333/PC3-10600 |
| Memory Standard: | DDR3-1066/PC3-8500 |
| Memory Technology: | DDR3 SDRAM |
I/O Controller
| Controller Type: | Serial ATA/300 |
| Controller Type: | Serial ATA/600 |
| RAID Supported: | Yes |
| RAID Levels: | 5 |
| RAID Levels: | 1+0 |
| RAID Levels: | 0 |
| RAID Levels: | 1 |
Video
| Onboard Video: | On-board Video Chipset |
| Graphics Controller Manufacturer: | ASPEED |
| Graphics Controller Model: | AST2300 |
| Graphics Controller Memory: | 16 MB |
| Graphics Memory Technology: | VRAM |
Network & Communication
| Gigabit Ethernet: | Yes |
I/O Expansions
| Number of Total Expansion Slots: | 6 |
| PCI Express Standard: | PCI Express 3.0 |
| Total Number of PCI Express Slots: | 6 |
| Number of PCI Express x16 Slots: | 6 |
Interfaces/Ports
| Total Number of USB Ports: | 2 |
| Number of USB 2.0 Ports: | 2 |
| Audio Line In: | No |
| Audio Line Out: | No |
| Microphone Port: | No |
| VGA: | Yes |
| Network (RJ-45): | Yes |
| Number of Network (RJ-45) Ports: | 3 |
| PS/2 Port: | Yes |
| Number of PS/2 Ports: | 2 |
Onboard Interfaces
| Number of SATA Interfaces: | 6 |
| Total Number of Onboard USB Ports: | 5 |
| Onboard Serial Header: | Yes |
| Onboard LEDs Header: | Yes |
Physical Characteristics
| Form Factor: | SSI EEB |
| Width: | 13.0" |
| Depth: | 12.0" |
| Green Compliant: | Yes |
Miscellaneous
| Certifications & Standards: |
|
| Green Compliance Certificate/Authority: | RoHS |
| Green Compliance Certificate/Authority: | WEEE |
Product images may differ from actual product appearance.
Be the first to review this product.
Write a Review
Shipping Restrictions
- This item cannot be shipped to PO Boxes.
- This item can be shipped only within the U.S.
- UPC: 610839186150
- Mfr's Part #: Z9PE-D16/2LASMB6IKVM
