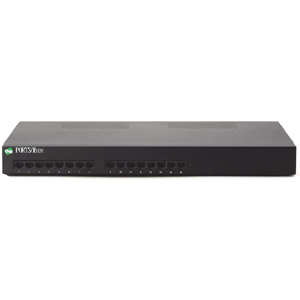

Click to enlarge
free shipping
Item #:
N-203305
Category:
Hardware
Availability:
Backordered
Packaging:
Retail Packaging
Platform:
N/A
Condition:
New
Brand:
Digi International
Your Price: $964.86

General Information

The AccelePort Xem asynchronous concentrator is an expandable, modular and intelligent serial communication solution designed specifically for small to mid-size multi-user installations. It is especially well-suited to applications that are expected to start small and grow over time, to as many as 16 ports.

Technical Information
Host Interface:Universal PCI
Data Transfer Rate:Up to 115.20 Kbps Per Port Maximum
Protocols:RS-232
Platform Supported:PC

Processor & Chipset
Processor:IDT 3081 RISC On-board

Interfaces/Ports
Ports Expandability:16 x RJ-45 RS-232 - Serial, Via Ports Module

Power Description
Input Voltage:3.3 V DC
Input Voltage:5 V DC 5%
Input Current:430 mA Typical @ 5 V DC

Environmental Conditions
Temperature:50°F (10°C) to 131°F (55°C) Operating
Temperature:-13°F (-25°C) to 185°F (85°C) Storage
Humidity:5 to 90% Non-condensing Relative Humidity
Altitude:0 ft to 12000 ft

Physical Characteristics
Form Factor:Plug-in Card
Dimensions:4.2" Height x 6.8" Width x 0.5" Thickness - Host Card
Dimensions:1.8" Height x 17.5" Width x 11.0" Depth - PORTS Rack

Miscellaneous
Package Contents:
  • AccelePort Xem 16-port RS-232 with RJ-45 Rack
  • EBI Cable (1.5m)
  • RJ-45 Rack
    • Additional Information:
  • Air movement: 30 CFM forced
  • 1U 19" rack -16 ports with RJ-45 connectors
  • On-board IDT 3081 RISK processor with patented Front End Processor/Operating System (FEP/OS)

    PORTS Modules:

  • Used to expand the Digi PortServer II product to a maximum of 64 ports
  • Surge protection on all signals
  • Supports full modem control and full hardware handshaking (CTS, RTS, DSR, DTR and DCD) on all ports
  • External Bus Interface (EBI) provides power to PORTS modules from bus. Applications that use less than 32 ports do not need a power supply option
    • System Requirements:
  • One full-length 32-bit or 64-bit slot
  • One 3.3V or 5V slot
    • Compatibility:
  • Compatible with PCI 32-bit
  • PCI/PCI-X compatible

    Supported Operating Systems:

  • AIX
  • Compaq Tru64 UNIX, OpenVMS (Legacy driver only)
  • HP-UX
  • Windows 95/98/Me
  • Windows NT
  • Windows 2000/XP
  • Windows Server 2003
  • Linux
  • Novell NetWare (Legacy driver only)
  • OS/2 (Legacy driver only)
  • QNX (Legacy driver only)
  • SCO OpenServer, UnixWare
  • Solaris SPARC, Intel
    • Certifications & Standards:

    Electromagnetic Emissions:

  • FCC Part 15, Class B
  • EN55022, Class B
  • ICES-003, Class B

    Electromagnetic Immunity:

  • EN50082-2

    Safety:

  • EN60950
  • UL 1950
  • CSA 22.2, No. 950

    • Warranty
    Limited Warranty:5 Year



    Product images may differ from actual product appearance.
    Be the first to review this product. Write a Review
    Shipping Restrictions
    • This item cannot be shipped to PO Boxes.
    • This item can be shipped only within the U.S.


    • UPC: 663072925055
    • Mfr's Part #: 70001757
