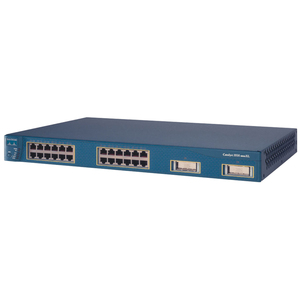

Cisco-IMSourcing Catalyst WS-C3550-24-EMI Ethernet Switch - 24 Ports - Manageable - 24 x RJ-45 - Stack Port - 2 x Expansion Slots - 10/100Base-TX - Rack-mountable, Wall Mountable, Desktop
free shipping
Item #:
N-197487
Category:
Wired Networking
Availability:
Item is in stock
Packaging:
Retail Packaging
Platform:
N/A
Condition:
Mfr Refurbished
Brand:
Cisco


Your Price: $145.65

Add To Cart

Product Rating

(0 Ratings) Write a Review


General Information

The Cisco Catalyst® 3550 Series Intelligent Ethernet Switches is a line of enterprise-class, stackable, multilayer switches that provide high availability, security and quality of service (QoS) to enhance the operation of the network. With a range of Fast Ethernet and Gigabit Ethernet configurations, the Catalyst 3550 Series can serve as both a powerful access layer switch for medium enterprise wiring closets and as a backbone switch for small networks. Customers can deploy network-wide intelligent services, such as advanced QoS, rate-limiting, Cisco security access control lists, multicast management, and high-performance IP routing-while maintaining the simplicity of traditional local area network (LAN) switching. Embedded in the Catalyst 3550 Series is the Cisco Cluster Management Suite (CMS) Software, which allows users to simultaneously configure and troubleshoot multiple Catalyst desktop switches using a standard Web browser. Cisco CMS Software provides new configuration wizards that greatly simplify the implementation of converged networks and intelligent network services.

Interfaces/Ports
Total Number of Network Ports:24
Token Ring Port:No
LRE Port:No
Bypass:No
Modular:No
Management Port:Yes
USB:No
Stack Port:Yes
Number of Network (RJ-45) Ports:24

Media & Performance
Media Type Supported:Twisted Pair
Twisted Pair Cable Standard:Category 5
Ethernet Technology:Fast Ethernet
Network Technology:10/100Base-TX

I/O Expansions
Number of Total Expansion Slots:2
Expansion Slot Type:GBIC
Number of GBIC Slots:2

Network & Communication
Layer Supported:4

Management & Protocols
Manageable:Yes
Management:
  • SNMP v1,v2c,v3
  • Telnet
  • RMON I and II
  • CLI
  • QoS
  • VLANs
  • Syslog
  • DHCP
  • CiscoWorks
  • MIB II

Memory
Standard Memory:64 MB
Memory Technology:DRAM
Flash Memory:16 MB

Reliability
MTBF:193000 Hour

Power Description
PoE (RJ-45) Port:No
Input Voltage:110 V AC
Input Voltage:220 V AC
Power Source:Power Supply
Redundant Power Supply:Yes

Physical Characteristics
Compatible Rack Unit:1U
Form Factor:Rack-mountable
Form Factor:Wall Mountable
Form Factor:Desktop
Height:1.8"
Width:17.5"
Depth:14.4"
Weight (Approximate):11.02 lb

Miscellaneous
Certifications & Standards:Safety Certifications:
  • UL to UL 1950, Third Edition
  • c-UL to CAN/CSA 22.2 No. 950-95, Third Edition
  • TUV/GS to EN 60950 with Amendment A1-A4 and A11
  • CB to IEC 60950 with all country deviations
  • NOM to NOM-019-SCFI
  • CE Marking
Electromagnetic Emissions Certifications:
  • FCC Part 15 Class A
  • EN 55022 Class A (CISPR 22 Class A)
  • VCCI Class A
  • AS/NZS 3548 Class A
  • BSMI
IEEE Standards:
  • 802.1x
  • 802.1w
  • 802.1s
  • 802.3x
  • 802.1D
  • 802.1p
  • 802.1Q
  • 802.3ad
  • 802.3
  • 802.3u
  • 802.3ab
  • 802.3z

Warranty
Limited Warranty:3 Year
Additional Warranty Information:
  • Product does not ship from original manufacturer
  • Product may not be eligible for original manufacturer warranty, rebates or programs
  • Direct replacement warranty provided by Ingram Micro (1 year for components, 3 year for systems)
  • Product ships from IMSourcing facility within 2-3 days or from stock
  • Product may ship in non-standard packaging
  • All returns processed directly from IMSourcing
  • Product condition subject to availability
  • Replacement parts are from our Service inventory and meet our rigorous inspection and quality standards. Some will be new, some are manufacturer certified refurbished, some are considered 'as new' and have been tested, refurbished or remanufactured. All are fully warranted
  • Where applicable, -IM indicates an Ingram Micro certified pre-owned product



  • Product images may differ from actual product appearance.
    Be the first to review this product. Write a Review
    Shipping Restrictions
    • This item cannot be shipped to PO Boxes.
    • This item can be shipped only within the U.S.


    • UPC: 746320674391
    • Mfr's Part #: WS-C3550-24-EMI
