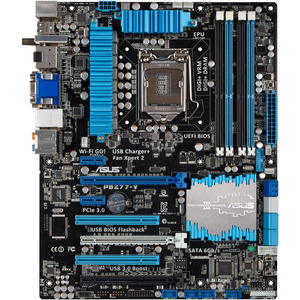

Asus P8Z77-V Desktop Motherboard - Intel Z77 Express Chipset - Socket H2 LGA-1155 - ATX - 1 x Processor Support - 32 GB DDR3 SDRAM Maximum RAM - SLI, CrossFireX Support - Serial ATA/300, Serial ATA/600 RAID Supported Controller - CPU Dependent Video - 3 x
free shipping
- Item #:
- N-191471
- Category:
- Motherboards
- Availability:
- Item is in stock
- Packaging:
- Retail Packaging
- Platform:
- N/A
- Condition:
- New
- Brand:
- Asus
General Information
This motherboard supports Intel 3rd generation Intel Core processor-based platform and 2nd generation Core i7/i5/i3/Pentium/Celeron processors, with iGPU, memory and PCI Express controllers integrated to support onboard graphics output with dedicated chipsets, 2-channel (4 DIMM) DDR3 memory and 16 PCI Express 3.0/2.0 lanes. This provides great graphics performance. Intel 3rd generation Intel Core processor-based platform and 2nd generation Core i7/i5/i3/Pentium/Celeron processors are among the most powerful and energy efficient CPUs in the world. |
Processor & Chipset
| Chipset Manufacturer: | Intel |
| Chipset Model: | Z77 Express |
| Total Processor Supported: | 1 |
| Processor Technology: | Smart Response Technology |
| Processor Technology: | Turbo Boost Technology 2.0 |
| Processor Socket: | Socket H2 LGA-1155 |
| Processor Supported: | Core i5 |
| Processor Supported: | Core i7 |
| Processor Supported: | Core i3 |
| Processor Supported: | Pentium Dual-core |
| Processor Supported: | Celeron Dual-Core |
| 64-bit Processing: | Yes |
| Multi GPU Supported: | SLI |
| Multi GPU Supported: | CrossFireX |
Memory
| Number of Memory Slots: | 4 |
| Memory Form Factor: | UDIMM |
| Maximum Memory: | 32 GB |
| Memory Standard: | DDR3-2600/PC3-20800 (O.C.) |
| Memory Standard: | DDR3-2400/PC3-19200 (O.C.) |
| Memory Standard: | DDR3-2200/PC3-17600 (O.C.) |
| Memory Standard: | DDR3-2133/PC3-17000 (O.C.) |
| Memory Standard: | DDR3-2000/PC3-16000 (O.C.) |
| Memory Standard: | DDR3-1866/PC3-15000 (O.C.) |
| Memory Standard: | DDR3-1800/PC3-14400 (O.C.) |
| Memory Standard: | DDR3-1600/PC3-12800 |
| Memory Standard: | DDR3-1333/PC3-10600 |
| Memory Technology: | DDR3 SDRAM |
I/O Controller
| Controller Type: | Serial ATA/300 |
| Controller Type: | Serial ATA/600 |
| RAID Supported: | Yes |
| RAID Levels: | 0 |
| RAID Levels: | 1 |
| RAID Levels: | 5 |
| RAID Levels: | 1+0 |
Video
| Onboard Video: | CPU Dependent Video |
Audio
| Sound Controller Manufacturer: | Realtek |
| Sound Controller Model: | ALC892 |
| Audio Channels: | 7.1 |
Network & Communication
| Gigabit Ethernet: | Yes |
| Wi-Fi: | Yes |
| Wi-Fi Standard: | IEEE 802.11b/g/n |
I/O Expansions
| Number of Total Expansion Slots: | 7 |
| Number of PCI Slots: | 2 |
| PCI Express Standard: | PCI Express 3.0 |
| PCI Express Standard: | PCI Express 2.0 |
| Total Number of PCI Express Slots: | 5 |
| Number of PCI Express x1 Slots: | 2 |
| Number of PCI Express x16 Slots: | 3 |
Interfaces/Ports
| Total Number of USB Ports: | 6 |
| Number of USB 2.0 Ports: | 2 |
| Number of USB 3.0 Ports: | 4 |
| Audio Line In: | Yes |
| Audio Line Out: | Yes |
| Microphone Port: | Yes |
| S/PDIF: | Yes |
| Number of S/PDIF Out Ports: | 1 |
| VGA: | Yes |
| HDMI: | Yes |
| Number of HDMI Outputs: | 1 |
| DisplayPort: | Yes |
| Number of DisplayPort Outputs: | 1 |
| DVI: | Yes |
| Number of DVI Outputs: | 1 |
| Network (RJ-45): | Yes |
| Number of Network (RJ-45) Ports: | 1 |
| PS/2 Port: | Yes |
| Number of PS/2 Ports: | 1 |
Onboard Interfaces
| Number of SATA Interfaces: | 8 |
| Total Number of Onboard USB Ports: | 10 |
| Number of Onboard USB 2.0 Ports: | 8 |
| Number of Onboard USB 3.0 Ports: | 2 |
| Onboard Serial Header: | Yes |
| Onboard LEDs Header: | Yes |
| Onboard Audio Header: | Yes |
| Onboard S/PDIF Header: | Yes |
Controls/Indicators
| Buttons & Keys: | BIOS Flashback |
| Buttons & Keys: | MemOK |
Power Description
| Power Supply Supported: | EPS12V |
Physical Characteristics
| Form Factor: | ATX |
| Width: | 12.0" |
| Depth: | 9.6" |
Miscellaneous
| Package Contents: |
|
| Certifications & Standards: |
|
| Green Compliant: | Yes |
| Green Compliance Certificate/Authority: | WEEE |
Warranty
| Limited Warranty: | 3 Year |
Product images may differ from actual product appearance.
Be the first to review this product.
Write a Review
Shipping Restrictions
- This item cannot be shipped to PO Boxes.
- This item can be shipped only within the U.S.
- UPC: 610839185771
- Mfr's Part #: P8Z77-V
