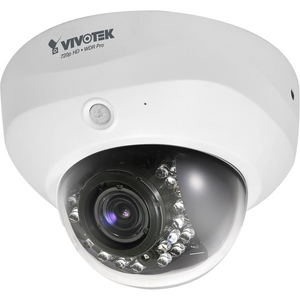

Vivotek FD8135H Surveillance/Network Camera - Monochrome, Color - 3x Optical - CMOS - Cable - Fast Ethernet
free shipping
Item #:
N-191218
Category:
Security Hardware
Availability:
Item is in stock
Packaging:
Retail Packaging
Platform:
N/A
Condition:
New
Brand:
VIVOTEK
Your Price: $453.70
Add To Cart

Product Rating

(0 Ratings) Write a Review

General Information

VIVOTEK's FD8135H network camera features an HD WDR CMOS sensor to cope with challenging lighting conditions. The WDR feature allows the camera to capture both the dark and bright parts of an image and combines the differences to generate a highly realistic image representative of the original scene, enabling it to provide video quality close to the capabilities of the human eye. This function enables the FD8135H to be widely applicable in high contrast environments such as lobby entrances, parking lots, ATMs, loading areas, and much more. The P-iris lens controls the iris with extreme precision; with its built-in stepper motor, it maintains the iris opening at an optimal level at all times, resulting in superior image clarity and depth of field as well as image quality.

Incorporating an IR-cut filter that can be removed automatically at night and built-in IR illuminators with coverage of up to 20 meters, the FD8135H is an outstanding 24-hour surveillance solution. Together with a PIR sensor for human detection, 802.3af compliant PoE, tamper detection, MicroSD/SDHC card for on-board storage, the FD8135H is indisputably the top choice for reliable and performance surveillance.

Display & Graphics
Image Sensor Type:CMOS
Illumination:0.8 Lux
Illumination:0 Lux
Color Supported:Monochrome
Color Supported:Color
Tilt:80°
Swivel:350°

Video
Video Formats:MPEG-4
Video Formats:Motion JPEG
Maximum Video Resolution:1280 x 800

Audio
Audio Formats:AAC

Lens
Lens Included:Yes
Focal Length:3 mm to 9 mm
Aperture Range:f/1.2
Aperture Range:f/2.1
Optical Zoom:3x
Digital Zoom:16x

Exposure
Shortest Shutter Speed:1/25000 Second
Longest Shutter Speed:1/5 Second

Network & Communication
Connectivity Technology:Cable
Ethernet:Yes
Ethernet Technology:Fast Ethernet
Protocols:IPv6
Protocols:IPv4
Protocols:TCP/IP
Protocols:HTTPS
Protocols:HTTP
Protocols:UPnP
Protocols:RTSP
Protocols:RTP/RTCP
Protocols:IGMP
Protocols:SMTP
Protocols:FTP
Protocols:DHCP
Protocols:NTP
Protocols:DNS
Protocols:DDNS
Protocols:PPPoE
Protocols:COS
Protocols:QoS
Protocols:SNMP
Protocols:802.1X

Storage
Flash Memory Capacity:16 MB

Controls/Indicators
Status Indicators:
  • Power LED
  • Status LED

Interfaces/Ports
Analog Video Out:Yes
Network (RJ-45):Yes

Power Description
Maximum Power Consumption:8 W

Physical Characteristics
Height:4.3"
Diameter:6.2"
Weight (Approximate):1.72 lb
System Requirements:
  • Operating Systems Supported: Microsoft Windows 7 /

Miscellaneous
Package Contents:
  • 720p HD P-iris WDR Pro PIR Dome Network Camera FD8135H
  • Alignment Sticker
  • Screwdriver
  • T10 Torx Screwdriver
  • Plastic Anchors
  • AV Cable
  • Quick Installation Guide
  • Software CD
  • Warranty Card




Product images may differ from actual product appearance.
Be the first to review this product. Write a Review
Shipping Restrictions
  • This item cannot be shipped to PO Boxes.
  • This item can be shipped only within the U.S.


  • UPC: 712123672489
  • Mfr's Part #: FD8135H
