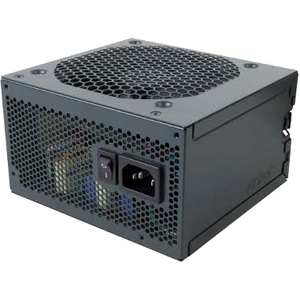

Antec EarthWatts EA-500 Green ATX12V & EPS12V Power Supply - 88% Efficiency - 500 W - Internal - 110 V AC, 220 V AC
free shipping
- Item #:
- N-189991
- Category:
- Power Supplies
- Availability:
- Item is in stock
- Packaging:
- Retail Packaging
- Platform:
- N/A
- Condition:
- New
- Brand:
- Antec
General Information
Get more power and lower your electricity bill with the new EarthWatts Green series! One of the most environmentally-friendly power supplies available, the EarthWatts EA-500 Green efficiently delivers 500 Watts of reliable and stable power while meeting the Bronze level of efficiency from 80 PLUS, the most widely recognized independent standard in power supply efficiency. On top of that, this EarthWatts Green power supply offers Universal Input to automatically work on any power grid on the planet, and a 120 mm double ball bearing fan to keep cool. Get the power you need, save money and help protect the environment with Antec's EA-500 Green! |
Technical Information
| Efficiency: | 88% |
| Power Factor Correction (PFC): | Active |
| Number of Fans: | 1 |
| Protection Type: | Over Current |
| Protection Type: | Over Voltage |
| Protection Type: | Short Circuit |
| Protection Type: | Over Power |
| Protection Type: | Over Temperature |
| Protection Type: | Under Voltage |
Reliability
| MTBF: | 100000 Hour |
Power Description
| Input Voltage Type: | AC |
| Input Voltage: | 110 V AC |
| Input Voltage: | 220 V AC |
| Input Voltage Range: | 100 V AC to 240 V AC |
| Number of +12V Rails: | 2 |
| Output Voltage: | 3.3 V DC @ 24 A |
| Output Voltage: | 5 V DC @ 24 A |
| Output Voltage: | 12 V DC @ 32 A |
| Output Voltage: | -12 V DC @ 500 mA |
| Output Voltage: | 5 V DC @ 2.50 A |
| Input Current: | 9 A @110 V AC/4.50 A @220 V AC |
| Output Power: | 500 W |
Interfaces/Ports
| Plug/Connector: | On/Off Switch |
| Receptacles: | 1 x 20+4pin ATX Motherboard |
| Receptacles: | 1 x 4+4pin ATX12V Motherboard |
| Receptacles: | 4 x 4-pin LP4 Peripheral Device |
| Receptacles: | 2 x 6+2pin PCI-E |
| Receptacles: | 5 x Serial ATA |
| Receptacles: | 1 x 4-pin SP4 Floppy Drive |
Physical Characteristics
| Form Factor: | Internal |
| Height: | 3.4" |
| Width: | 5.9" |
| Depth: | 5.5" |
| Weight (Approximate): | 4.20 lb |
Miscellaneous
| Green Compliant: | Yes |
| Green Compliance Certificate/Authority: | 80 Plus Bronze |
| Green Compliance Certificate/Authority: | RoHS |
| Green Compliance Certificate/Authority: | ErP Lot 6 |
Warranty
| Limited Warranty: | 3 Year |
Product images may differ from actual product appearance.
Be the first to review this product.
Write a Review
Shipping Restrictions
- This item cannot be shipped to PO Boxes.
- This item can be shipped only within the U.S.
- UPC: 761345275088
- Mfr's Part #: EA-500 GREEN
