Click to enlarge
free shipping
Item #:
N-189681
Category:
Adapters
Availability:
Item is in stock
Packaging:
Retail Packaging
Platform:
N/A
Condition:
New
Brand:
Intel
Your Price: $623.08
Add To Cart

Product Rating

(0 Ratings) Write a Review

General Information

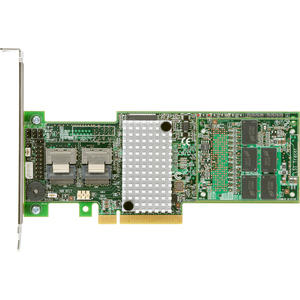

The Intel RAID Controller RS25DB080, a second generation SAS-2/SATA-3 card with eight internal ports, delivers two 800MHz processor cores and a 72-bit DDR3 interface that drives 1 GB cache memory. For users implementing hybrid server platforms based on solid-state storage, the Intel RS25DB080 unleashes the IOPs and throughput potential of SSDs to provide exceptional storage performance. Users deploying this controller in HDD-based server environments are likely to experience significant performance gains compared to previous generation controllers.

Technical Information
Host Interface:PCI Express x8
Data Transfer Rate:Up to 600 MBps Per Port
Interfaces:Serial ATA/600
Interfaces:Serial Attached SCSI (SAS)
RAID Supported:Yes
RAID Levels:0
RAID Levels:1
RAID Levels:5
RAID Levels:6
RAID Levels:10
RAID Levels:50
RAID Levels:60
Drive Supported:Up to 128 x Physical

Memory
Standard Memory:1 GB DDR3 SDRAM

Interfaces/Ports
Ports:2 x SFF-8087 6Gb/s SAS - Serial Attached SCSI (SAS) Internal

Physical Characteristics
Height:2.5"
Width:6.6"
Form Factor:Half-length Low-profile Plug-in Card



Product images may differ from actual product appearance.
Be the first to review this product. Write a Review
Shipping Restrictions
  • This item cannot be shipped to PO Boxes.
  • This item can be shipped only within the U.S.


  • UPC: 735858219884
  • Mfr's Part #: RS25DB080
