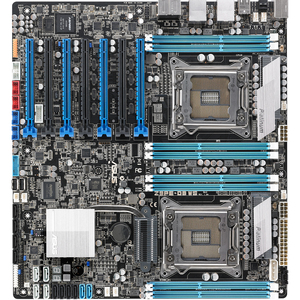

Asus Z9PE-D8 WS Workstation Motherboard - Intel C602 Chipset - Socket R LGA-2011 - SSI EEB - 2 x Processor Support - 256 GB DDR3 SDRAM Maximum RAM - SLI, CrossFireX Support - Serial ATA/600, Serial ATA/300 RAID Supported Controller - 7 x PCIe x16 Slot - 2
free shipping
- Item #:
- N-188590
- Category:
- Motherboards
- Availability:
- Item is in stock
- Packaging:
- Retail Packaging
- Platform:
- N/A
- Condition:
- New
- Brand:
- Asus
General Information
The ASUS Workstation Series is the ideal foundation for a powerful PC. It delivers awesome power, dependable performance and unmatched multiple I/O scalability for the most demanding tasks and future upgrades. The ASUS Workstation Series intelligently reduces operating noise and dissipates heat through advanced and environmentally friendly methods to accommodate user needs. Series motherboards also bring you ultimate reliability and quality through our 24x24 initiative, which means 24-hour non-stop operation and a 24-month life cycle supply guarantee so you're not compelled to change computers often.Instead, let the ASUS Workstation Series improve the quality of your work and life. |
Processor & Chipset
| Chipset Manufacturer: | Intel |
| Chipset Model: | C602 |
| Total Processor Supported: | 2 |
| Processor Technology: | Turbo Boost Technology 2.0 |
| Processor Socket: | Socket R LGA-2011 |
| Processor Supported: | Xeon Octa-core |
| Processor Supported: | Xeon Hexa-core |
| 64-bit Processing: | Yes |
| Multi GPU Supported: | SLI |
| Multi GPU Supported: | CrossFireX |
Memory
| Number of Memory Slots: | 8 |
| Memory Form Factor: | UDIMM |
| Maximum Memory: | 256 GB |
| Memory Standard: | DDR3-2000/PC3-16000 (O.C.) |
| Memory Standard: | DDR3-1866/PC3-15000 (O.C.) |
| Memory Standard: | DDR3-1600/PC3-12800 |
| Memory Standard: | DDR3-1333/PC3-10600 |
| Memory Standard: | DDR3-1066/PC3-8500 |
| Memory Standard: | DDR3-2133/PC3-17000 (O.C.) |
| Memory Technology: | DDR3 SDRAM |
I/O Controller
| Controller Type: | Serial ATA/600 |
| Controller Type: | Serial ATA/300 |
| RAID Supported: | Yes |
| RAID Levels: | 0 |
| RAID Levels: | 1 |
| RAID Levels: | 5 |
| RAID Levels: | 1+0 |
Audio
| Sound Controller Manufacturer: | Realtek |
| Sound Controller Model: | ALC898 |
| Audio Channels: | 7.1 |
Network & Communication
| Gigabit Ethernet: | Yes |
I/O Expansions
| Number of Total Expansion Slots: | 7 |
| PCI Express Standard: | PCI Express 3.0 |
| Total Number of PCI Express Slots: | 7 |
| Number of PCI Express x16 Slots: | 7 |
Interfaces/Ports
| Total Number of USB Ports: | 8 |
| Number of USB 2.0 Ports: | 6 |
| Number of USB 3.0 Ports: | 2 |
| Audio Line In: | Yes |
| Audio Line Out: | Yes |
| Microphone Port: | Yes |
| S/PDIF: | Yes |
| Number of S/PDIF Out Ports: | 1 |
| Network (RJ-45): | Yes |
| Number of Network (RJ-45) Ports: | 2 |
| PS/2 Port: | Yes |
| Number of PS/2 Ports: | 1 |
Onboard Interfaces
| Number of SATA Interfaces: | 14 |
| Total Number of Onboard USB Ports: | 8 |
| Number of Onboard USB 2.0 Ports: | 6 |
| Number of Onboard USB 3.0 Ports: | 2 |
| Total Number of Onboard FireWire/i.LINK Ports: | 2 |
| Number of Onboard FireWire/i.LINK 400 Ports: | 2 |
| Onboard Serial Header: | Yes |
| Onboard LEDs Header: | Yes |
| Onboard |
Product images may differ from actual product appearance.
Be the first to review this product.
Write a Review
Shipping Restrictions
- This item cannot be shipped to PO Boxes.
- This item can be shipped only within the U.S.
- UPC: 610839185689
- Mfr's Part #: Z9PE-D8 WS
