Click to enlarge
free shipping
Item #:
N-186869
Category:
LCD Accessories
Availability:
Item is in stock
Packaging:
Retail Packaging
Platform:
N/A
Condition:
New
Brand:
OMNIMOUNT SYSTEMS INC
Your Price: $89.73
Add To Cart

Product Rating

(0 Ratings) Write a Review

General Information

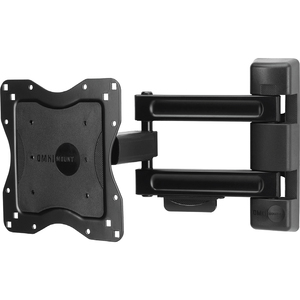

With enhanced functionality and a streamlined design, the NC80C fits most 23" - 42" flat panel TVs up to 80 lbs (36.3 kg) and is a reliable single-arm full motion mounting solution for medium flat panel TVs. The New Classics Series puts a fresh spin on an old favorite, providing fixed, tilt and full motion TV mounts with improved functionality - not to mention a new clean design.

Product Information
Device Supported:Flat Panel Display
Maximum Load Capacity:80.00 lb
Minimum Screen Size Supported:23"
Maximum Screen Size Supported:42"
Maximum Adjustable Depth:16.30"
Features:Cable Management
Features:Leveling System
Features:Tilt
Features:Pan
Features:Swivel
Features:Locking System

Physical Characteristics
Color:Black
VESA Mount Compatible:Yes
VESA Mount Standard:100 x 100
VESA Mount Standard:400 x 400
Material:Metal
Material:Steel
Height:17.2"
Width:17.2"
Depth:3.6"

Miscellaneous
Package Contents:
  • 1 x Full Motion Wall Plate
  • 1 x Full Motion Arm
  • 1 x Monitor Plate
  • 2 x Cable Management Channel
  • 1 x Wall Plate Cover
  • 4 x Spider 44 Adapter
  • 4 x (M4 x 15mm) Philips Screws
  • 1 x Front Arm Cable Management Cover
  • 4 x Front Arm Cable Management Cover Screws
  • 1 x Bottom Arm Cable Management
  • 2 x Tilt Adjustment Tension Screws
  • 4 x (M4 x 30mm) Philips Screws
  • 4 x (M5 x 15mm) Philips Screws
  • 4 x (M5 x 30mm) Philips Screws
  • 4 x (M6 x 15mm) Philips Screws
  • 4 x (M6 x 30mm) Philips Screws
  • 4 x (M8 x 15mm) Philips Screws
  • 4 x (M8 x 30mm) Philips Screws
  • 3 x Lag Bolts
  • 8 x M6 Carriage Bolt
  • 3 x Wall Anchor
  • 2 x M5 Phillips Screw
  • 1 x 3mm Allen Wrench
  • 1 x Wrench
  • 1 x Instruction Manual
  • Mounting Hardware
Additional Information:
  • Frictionless Delrin washers at every joint for fluid movement
  • Patent-pending 4-bar tilt mechanism for effortless adjustment
  • Extruded aluminum arms for maximum support in a lightweight mount
  • Tilt: -5° to +15°
  • Mounting profile: 3.3" (84mm)
  • Maximum extension: 15.6" (397mm)
  • Mounting: Single-stud or 4-point solid wall
Certifications & Standards:

C-UL-US

Recycled:Yes

Warranty
Limited Warranty:5 Year



Product images may differ from actual product appearance.
Be the first to review this product. Write a Review
Shipping Restrictions
  • This item cannot be shipped to PO Boxes.
  • This item can be shipped only within the U.S.


  • UPC: 728901023125
  • Mfr's Part #: NC80C
