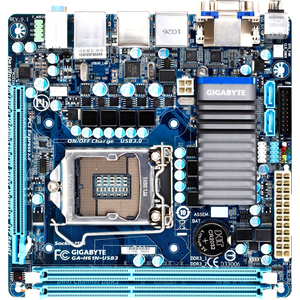

Gigabyte Super4 GA-H61N-USB3 Desktop Motherboard - Intel H61 Express Chipset - Socket H2 LGA-1155 - Mini ITX - 1 x Processor Support - 16 GB DDR3 SDRAM Maximum RAM - Serial ATA/300 - CPU Dependent Video - 1 x PCIe x16 Slot - 2 x USB 3.0 Port - HDMI
free shipping
- Item #:
- N-185906
- Category:
- Motherboards
- Availability:
- Item is in stock
- Packaging:
- Retail Packaging
- Platform:
- N/A
- Condition:
- New
- Brand:
- Gigabyte
General Information
GIGABYTE Super4 motherboards are the latest range of next-generation desktop motherboards based on the Intel H61 Express Chipset with support for 2nd generation 'Sandy Bridge' Intel Core CPUs. Not only delivering Intel's industry-leading performance and advanced integrated graphics capabilities, GIGABYTE Super4 motherboards are equipped with a comprehensive range of unique features that offer mainstream PC users the most compelling platform on the market today. |
Processor & Chipset
| Chipset Manufacturer: | Intel |
| Chipset Model: | H61 Express |
| Total Processor Supported: | 1 |
| Processor Technology: | Turbo Boost Technology |
| Processor Technology: | Enhanced SpeedStep Technology |
| Processor Socket: | Socket H2 LGA-1155 |
| Processor Supported: | Core i5 |
| Processor Supported: | Core i7 |
| Processor Supported: | Core i3 |
| Processor Supported: | Pentium Dual-core |
| Processor Supported: | Celeron Dual-Core |
| 64-bit Processing: | Yes |
Memory
| Number of Memory Slots: | 2 |
| Memory Form Factor: | DIMM |
| Maximum Memory: | 16 GB |
| Memory Standard: | DDR3-1333/PC3-10600 |
| Memory Standard: | DDR3-1066/PC3-8500 |
| Memory Technology: | DDR3 SDRAM |
I/O Controller
| Controller Type: | Serial ATA/300 |
| RAID Supported: | No |
Video
| Onboard Video: | CPU Dependent Video |
Audio
| Sound Controller Manufacturer: | Realtek |
| Sound Controller Model: | ALC889 |
| Audio Channels: | 7.1 |
Network & Communication
| Gigabit Ethernet: | Yes |
I/O Expansions
| Number of Total Expansion Slots: | 1 |
| PCI Express Standard: | PCI Express 2.0 |
| Total Number of PCI Express Slots: | 1 |
| Number of PCI Express x16 Slots: | 1 |
Interfaces/Ports
| eSATA: | Yes |
| Number of eSATA Ports: | 1 |
| Total Number of USB Ports: | 6 |
| Number of USB 2.0 Ports: | 4 |
| Number of USB 3.0 Ports: | 2 |
| Audio Line In: | Yes |
| Audio Line Out: | Yes |
| Microphone Port: | Yes |
| S/PDIF: | Yes |
| Number of S/PDIF Out Ports: | 2 |
| VGA: | Yes |
| HDMI: | Yes |
| Number of HDMI Outputs: | 1 |
| DVI: | Yes |
| Number of DVI Outputs: | 1 |
| Network (RJ-45): | Yes |
| Number of Network (RJ-45) Ports: | 1 |
Onboard Interfaces
| Number of SATA Interfaces: | 2 |
| Total Number of Onboard USB Ports: | 4 |
| Number of Onboard USB 2.0 Ports: | 4 |
| Onboard LEDs Header: | Yes |
| Onboard Audio Header: | Yes |
| Onboard S/PDIF Header: | Yes |
Controls/Indicators
| Buttons & Keys: | CMOS Clear |
Power Description
| Power Supply Supported: | EPS12V |
| Width: | 6.7" |
Physical Characteristics
| Form Factor: | Mini ITX |
| Depth: | 6.7" |
Product images may differ from actual product appearance.
Be the first to review this product.
Write a Review
Shipping Restrictions
- This item cannot be shipped to PO Boxes.
- This item can be shipped only within the U.S.
- UPC: 818313013606
- Mfr's Part #: GA-H61N-USB3
