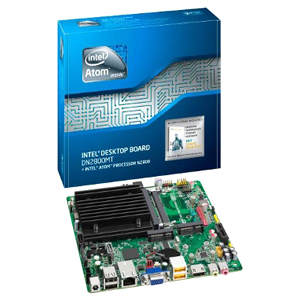

Intel Innovation DN2800MT Desktop Motherboard - Intel NM10 Express Chipset - 1 Pack - Mini ITX - 4 GB DDR3 SDRAM Maximum RAM - mSATA, Serial ATA/300 - On-board Video Chipset - HDMI
free shipping
- Item #:
- N-185733
- Category:
- Motherboards
- Availability:
- Item is in stock
- Packaging:
- Retail Packaging
- Platform:
- N/A
- Condition:
- New
- Brand:
- Intel
General Information
Intel Desktop Board DN2800MT is integrated with the new Intel Atom processor D2800 and the Intel NM10 Express Chipset to offer a thin mini-ITX desktop computer system. The board features a 10/100/1000 integrated Intel LAN, 1080 high-definition playback with HDMI, and Intel High Definition Audio (Intel HD Audio). With the new low-power silicon, the Intel Desktop Board DN2800MT can be used in chassis that require no fan for heat dissipation. This board is designed for ultra small form factor (~1 liter) and All-In-One chassis. While this desktop board is small in size, it delivers a rich multimedia and Internet experience with the support of 1080 high-definition video playback. |
Processor & Chipset
| Chipset Manufacturer: | Intel |
| Chipset Model: | NM10 Express |
| 64-bit Processing: | Yes |
Integrated Processor
| Integrated Processor Manufacturer: | Intel |
| Integrated Processor Type: | Atom |
| Integrated Processor Model: | N2800 |
| Integrated Processor Speed: | 1.86 GHz |
| Integrated Processor Cache: | 1 MB |
| Integrated Processor Core: | Dual-core (2 Core) |
Memory
| Number of Memory Slots: | 2 |
| Memory Form Factor: | SoDIMM |
| Maximum Memory: | 4 GB |
| Memory Standard: | DDR3-1066/PC3-8500 |
| Memory Standard: | DDR3-800/PC3-6400 |
| Memory Technology: | DDR3 SDRAM |
I/O Controller
| Controller Type: | mSATA |
| Controller Type: | Serial ATA/300 |
Video
| Onboard Video: | On-board Video Chipset |
| Graphics Controller Manufacturer: | Intel |
Audio
| Sound Controller Manufacturer: | Realtek |
| Sound Controller Model: | ALC888S |
| Audio Channels: | 7.1 |
Network & Communication
| Gigabit Ethernet: | Yes |
I/O Expansions
| Number of Total Expansion Slots: | 3 |
| PCI Express Standard: | PCI Express 1.0a |
| Total Number of PCI Express Slots: | 3 |
| Number of PCI Express x1 Slots: | 1 |
| Number of Mini PCI Express Slots: | 2 |
Interfaces/Ports
| Total Number of USB Ports: | 4 |
| Number of USB 2.0 Ports: | 4 |
| Audio Line In: | Yes |
| Audio Line Out: | Yes |
| Microphone Port: | Yes |
| VGA: | Yes |
| HDMI: | Yes |
| Number of HDMI Outputs: | 1 |
| Network (RJ-45): | Yes |
| Number of Network (RJ-45) Ports: | 1 |
Onboard Interfaces
| Number of SATA Interfaces: | 2 |
| Total Number of Onboard USB Ports: | 4 |
| Number of Onboard USB 2.0 Ports: | 4 |
| Onboard Parallel Header: | Yes |
| Onboard Serial Header: | Yes |
| Onboard LEDs Header: | Yes |
| Onboard Audio Header: | Yes |
| Onboard S/PDIF Header: | Yes |
Power Description
| Power Supply Supported: | EPS12V |
Physical Characteristics
| Form Factor: | Mini ITX |
| Width: | 6.7" |
| Depth: | 6.7" |
Miscellaneous
| Package Contents: |
Product images may differ from actual product appearance.
