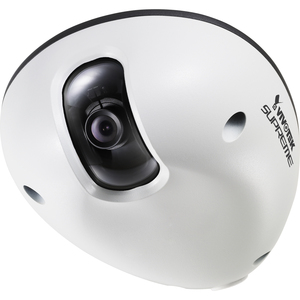

Vivotek Surveillance/Network Camera - Color - Board Mount - CMOS - Cable - Fast Ethernet
free shipping
Item #:
N-183739
Category:
Security Hardware
Availability:
Item is in stock
Packaging:
Retail Packaging
Platform:
N/A
Condition:
New
Brand:
VIVOTEK
Your Price: $366.14
Add To Cart

Product Rating

(0 Ratings) Write a Review

General Information

VIVOTEK MD8562 are compact, 2-Megapixel network cameras geared toward transportation applications such as buses, trains, and other vehicles. With full EN50155 compliance & IP67-rated design, the camera can withstand shock, vibration, humidity, dust, and temperature fluctuations, maintaining stable and reliable video during vehicle movement. Furthermore, the vandal-proof metal housing effectively provides robust protection from vandalism. As such, the combination of high resolution imaging and protective housing endows the MD8562 with the rugged reliability required to maximize passenger safety and optimize mobile surveillance.

By utilizing high-definition 1920x108 resolution, the MD8562 can deliver extremely clear and detailed images, achieving accurate identification of people or objects with ease. With WDR enhancement, users can identify image details in extremely bright or dark environments.

Display & Graphics
Image Sensor Type:CMOS
White Balance Modes:Auto
Illumination:0.2 Lux
Color Supported:Color
Tilt:0° to 90°

Video
Video Formats:Motion JPEG
Video Formats:MPEG-4
Maximum Video Resolution:1920 x 1080

Audio
Audio Formats:AAC

Lens
Lens Included:Yes
Focal Length:2.80 mm
Lens Mount Type:Board Mount
Wide Angle:Yes
Aperture Range:f/2
Focus Modes:Fixed Focus

Exposure
Shortest Shutter Speed:1/32000 Second
Longest Shutter Speed:1/5 Second

Network & Communication
Connectivity Technology:Cable
Ethernet:Yes
Ethernet Technology:Fast Ethernet
Protocols:IPv4
Protocols:IPv6
Protocols:TCP/IP
Protocols:HTTP
Protocols:HTTPS
Protocols:UPnP
Protocols:RTSP
Protocols:RTCP
Protocols:RTP
Protocols:IGMP
Protocols:SMTP
Protocols:FTP
Protocols:DHCP
Protocols:NTP
Protocols:DNS
Protocols:DDNS
Protocols:PPPoE
Protocols:COS
Protocols:QoS
Protocols:SNMP
Protocols:802.1X
Protocols:3GPP

Controls/Indicators
Status Indicators:

System Restore Status Indicator

Interfaces/Ports
Network (RJ-45):Yes

Power Description
Maximum Power Consumption:7.50 W

Physical Characteristics
Height:1.9"
Width:4.2"
Depth:5.1"
Weight (Approximate):15.87 oz

Miscellaneous
Package Contents:
  • Network Camera
  • Quick Installation Guide
  • Software CD
  • Warranty Card
Compatibility:

NTSC

Green Compliant:Yes
System Requirements:
  • Cell Phone: 3GPP Player
  • Real Player: 10.5 or Above
  • Quick Time: 6.5 or Above

Operating System:

  • Microsoft Windows 2000
  • Microsoft Windows XP
  • Microsoft Windows Vista
  • Microsoft Windows 7

Browser:

  • Mozilla Firefox
  • Internet Explorer 7.x or Above
Certifications & Standards:
  • IK10
  • IP67
  • CE
  • LVD
  • FCC
  • VCCI
  • C-Tick
  • EN50155
Security Features:
  • Muilti-level User Access with Password Protection
  • IP Address Filtering
  • HTTPS Encrypted Data Transmission
  • 802.1X Port-Based Authentication for Network Protection
Green Compliance Certificate/Authority:RoHS

Warranty
Limited Warranty:36 Month




Product images may differ from actual product appearance.
Be the first to review this product. Write a Review
Shipping Restrictions
  • This item cannot be shipped to PO Boxes.
  • This item can be shipped only within the U.S.


  • UPC: 712123672397
  • Mfr's Part #: MD8562
