Click to enlarge
free shipping
Item #:
N-182005
Category:
Wired Networking
Availability:
Item is in stock
Packaging:
Retail Packaging
Platform:
N/A
Condition:
New
Brand:
Motorola
Your Price: $86.30
Add To Cart

Product Rating

(0 Ratings) Write a Review

From the Manufacturer

Thank You

Is the information in this section helpful?

Features




Demo Video

Images

Image 1
Image 2
Image 3

Virtual Tour

  1. Power Signal
  2. Receive Signal
  3. Send Signal
  4. Online Signal
  5. Link Signal
  6. Ethernet Connection
  7. Coaxial Cable Connecction
  8. Power Connection
Image Features

Power Signal

Receive Signal

Send Signal

Online Signal

Link Signal

Ethernet Connection

Coaxial Cable Connecction

Power Connection

Specifications



GENERAL

CPE Network Interface10/100/1000Base-T Ethernet (RJ-45)
Data ProtocolTCP/IP
Dimensions5.24 in H x 5.24 in W x 1.65 in D
(133 mm x 133 mm x 42 mm)
Power9W (nominal)
Input PowerNorth America: 105 to 125 VAC, 60 Hz
Outside North America: 100 to 240 VAC, 50 to 60 Hz
RegulartoryRoHS compliant, ENERGY STAR V2 , COC V3, Compliant per the
“Code of Conduct on Energy Consumption of Broadband
Equipment”, CMM, MEPS



ENVIRONMENTAL

Operating Temperature32 F to 104 °F (0 °C to 40 °C)
Storage Temperature–22 °F to 158 °F (–30 °C to 70 °C)
Operating Humidity5 to 95% R.H. (non-condensing)



DOWNSTREAM

Modulation64 or 256 QAM
Capture Bandwidth100 MHz (edge to edge)

Maximum Theoretical Data Rate**

DOCSIS: 171.537 Mbps (4 channels) / 42.884 (single channel)
@ 256 QAM at 5.36 Msym/s

ProvisioningSupports IP addressing using IPv4 and/or IPv6 (dual stack)



UPSTREAM

Maximum Channel Rate**DOCSIS: 131.072 Mbps (4 channels) / 32.768 Mbps (single channel):
@ 128 QAM at 6.4 MHz
Frequency RangeDOCSIS 5-42 MHz (edge to edge), EuroDOCSIS and
optional DOCSIS 5 to 65 MHz (edge to edge)
CompatibilityPC: 90496, Pentium, or later; Windows Vista™, 2000, XP or 7 or Linux® with Ethernet connection (older versions of Windows, although not specifically supported, will work with this cable modem)
Macintosh: Power PC or later; OS 9 or higher, Ethernet connection
UNIX: Ethernet connection
Home Networking: Ethernet router or wireless access point

Getting Started Guide

Getting Started Guide
Getting Started Guide
View | Download
PDF, 1.19MB, 2 pages

General Information

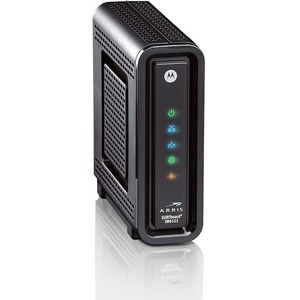

Your customers want high-bandwidth data and multimedia services. Our easy-to-use SB6121 SURFboard eXtreme Cable Modem helps you deliver. Harnessing the power of DOCSIS 3.0, the SB6121 enables channel bonding of up to four downstream channels and four upstream channels-so you can offer your customers advanced multimedia services with data rates of more than 100 Mbps in each direction.

Strengthen your broadband leadership. Count on the Motorola SB6121 to help you deliver innovative, ultra-broadband services to your premium customers.

Technical Information
Modulation:QPSK
Modulation:8QAM
Modulation:16QAM
Modulation:32QAM
Modulation:64QAM
Modulation:128QAM
Modulation:256QAM

Interfaces/Ports
Host Interface:RJ-45
F-type:Yes
Network (RJ-45):Yes
Number of Network (RJ-45) Ports:1

Media & Performance
Broadband Transmission Speed:222.5 Mbps

Network & Communication
Ethernet Technology:Gigabit Ethernet
Ethernet Technology:Fast Ethernet
Network Standard:10/100/1000Base-T

Physical Characteristics
Form Factor:Desktop
Height:5.2"
Width:5.2"
Depth:1.7"
Weight (Approximate):1.35 lb

Miscellaneous
Additional Information:
  • Offers innovative, high-bandwidth data and multimedia services to customers
  • Backward-compatible to DOCSIS/EuroDOCSIS 1.x and 2.0
  • DOCSIS 3.0-certified (EuroDOCSIS 3.0-based)
  • Channel bonding of up to 4 downstream and 4 upstream channels 1 GHz capable tuners
  • Supports IPv4 and IPv6 to expand network addressing capabilities
  • Enhanced security: supports Advanced Encryption Services (AES) traffic encryption
  • Remotely configurable and monitorable using SNMP and TFTP

    • Operating Systems:

  • Windows 7
  • Windows Vista
  • Windows XP
  • Windows 2000
  • Linux
  • Mac OS 9 or Higher
    • Green Compliant:Yes
    Green Compliance Certificate/Authority:Energy Star
    Green Compliance Certificate/Authority:RoHS



    Product images may differ from actual product appearance.
    Be the first to review this product. Write a Review
    Shipping Restrictions
    • This item cannot be shipped to PO Boxes.
    • This item can be shipped only within the U.S.


    • UPC: 612572186237
    • Mfr's Part #: 575319-019-00
