Click to enlarge
free shipping
Item #:
N-181789
Category:
Audio - Video Cables
Availability:
Item is in stock
Packaging:
Retail Packaging
Platform:
N/A
Condition:
New
Brand:
Startech.com
Your Price: $72.15
Add To Cart

Product Rating

(0 Ratings) Write a Review

General Information

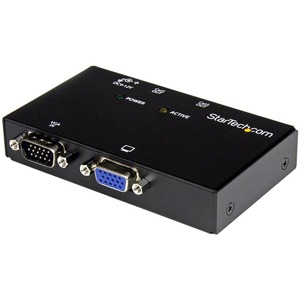

Extend and Distribute a VGA Signal to 2 Displays over Cat5 Cable. The ST1212T 2-Port VGA over Cat 5 Extender is designed for use with our ST121 VGA over Cat 5 extension series, offering convenient video distribution at distances of up to 500 feet (150 meters) using standard Cat 5 (or better) Ethernet cabling. Comprised of the transmitter unit only, the ST1212T requires one Receiver Unit (ST121R) per display that you are connecting. For added versatility, the VGA over Cat 5 Repeater (ST121EXT) can be used to extend the distance between the transmitter and receiver by an additional 500 feet (150 meters), for a total extension distance of 1000 feet (300 meters). Similarly, up to 3 repeater units can be used between transmitter and receiver, enabling you to connect monitors at each repeater, while still extending the total distance. Backed by a StarTech.com 2-year warranty and free lifetime technical support.

Technical Information
Connectivity Technology:Wired
Number of Input Devices Supported:1
Number of Output Devices Supported:1
Maximum Operating Distance:492.13 ft

Video
Graphics Modes:UXGA
Maximum Video Resolution:1600 x 1200

Interfaces/Ports
Network (RJ-45):Yes
VGA Out:Yes
Number of Network (RJ-45) Ports:2
Number of VGA Outputs:1

Media & Performance
Media Type Supported:Twisted Pair
Twisted Pair Cable Standard:Category 5

Power Description
Input Voltage:9 V DC

Physical Characteristics
Color:Black
Material:Aluminum
Weight (Approximate):7.05 oz

Miscellaneous
Package Contents:
  • 2 Port VGA over Cat5 Video Extender - Transmitter
  • Power Adapter
  • 1 x Set of rubber feet
  • 1 x Universal Power Adapter
  • 1 x Instruction Manual
Additional Information:
  • Cat 5 extension enables you to make use of existing Ethernet infrastructure wiring to extend VGA video
  • A pure hardware design provides an easy installation and setup, with no software or drivers required
  • Support for cascading multiple transmitter units, and the use of repeaters for additional distance, providing a scalable system for VGA distribution
Certifications & Standards:
  • CE
  • FCC
Green Compliant:Yes
Green Compliance Certificate/Authority:RoHS

Warranty
Limited Warranty:2 Year



Product images may differ from actual product appearance.
Be the first to review this product. Write a Review
Shipping Restrictions
  • This item cannot be shipped to PO Boxes.
  • This item can be shipped only within the U.S.


  • UPC: 065030844550
  • Mfr's Part #: ST1212T
