From the Manufacturer
Description

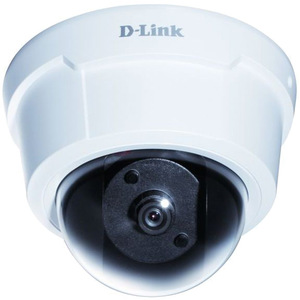

Full HD Fixed Dome Network Camera
Product Highlights
- 2 Megapixel Full HD Resolution- High Definition (Full HD) 2 Megapixel resolution and H.264 compression ensure a high-quality live video feed
- Power over Ethernet Support- The DCS-6112 utilizes Power over Ethenet (PoE), allowing it to be easily installed in locations without the need for supplemental power cabling
- Reliable 24-Hour Surveillance- Built-in Infrared LED illuminators1 provide a clear video at night for dependable 24-hour surveillance
- See More:
- Product Images
- Datasheet
Features
Full HD Surveillance
provide both high-quality and bandwidth-efficient compression formats. MJPEG delivers
excellent file integrity, ideal for situations which require high image detail. H.264 and MPEG-4 consumes less bandwidth and storage, useful for megapixel video, extended recording or for use in low-bandwidth networks. Additionally, the DCS-6112 supports multicast H.264/MPEG-4 streaming, allowing users to view the camera feed by subscribing to a multicast IP address on the network, eliminating redundant bandwidth consumption.
Multiple Video Streams
own independent resolution, frame rate and compression (H.264, MPEG-4 or MJPEG).
Tamper Detection
D-ViewCam™ for Management
Open Network Video Interface Forum (ONVIF)
Technical Features
• 2 Megapixel CMOS progressive sensor
• Real-time H.264, MPEG-4 and Motion JPEG compression
• Full HD resolution (1080p) to capture crisp and clear video
• H.264, MJPEG & MPEG-4 compression codec for distribution and recording of high definition video
• Fixed lens 4.0 mm f1.5
• Max. resolution 1920x1080 at 15 fps, 720p at 30fps
• Four simultaneous streams
• 2 Alarm Inputs / 1 Alarm Output
• Power over Ethernet (PoE)
• Tamper detection
• Motion detection
• Advanced event management
• ePTZ image manipulation
• microSD Card slot
• 2-way audio support
• 1 digital input / 1 digital output
• Analog AV output (NSTC/PAL)
• 3GPP mobile surveillance
• IPv6, 802.1x, QoS, Cos
• Built-in Samba client for NAS
• ONVIF-compliant
Specifications
Camera | |
| Hardware Profile
| • 1/2.7” 2 Megapixel CMOS progressive sensor • Minimum Illumination: 0.12 lux • Lens: fixed length 4.0mm, f1.5, 16x digial zoom |
| Field of View | • Horizontal: 73.5° |
| Image Features
| • Configurable image size, quality, frame rate, and bit rate • Time stamp and text overlays • Configurable motion detection windows • 5 Configurable privacy masks zone • Configurable WDR, white balance, shutter speed, brightness, saturation, contrast, sharpness |
| Video Compression
| • H.264/MPEG4/MJPEG compression (simultaneous operation) • H.264/MPEG-4 multicast streaming • JPEG for still images |
| Video Resolution | • 1920 x 1080 @ 15fps • 1280 x 720 @ 30fps • 320 x 240 @ 30fps • 1280 x 1024 @ 20fps • 640 x 480 @ 30fps • 176 x 144 @ 30fps |
| Audio Support |
• 2-way Audio Support |
| External Device Interface
| • microSD card slot • Digital I/O • External AV Output: NTSC/PAL switch |
Network | |
| Network Protocols
| • IPv4 • IPv6 • TCP/IP • UDP • ICMP • DHCP Client • NTP Client (D-Link) • DNS Client • DDNS Client (D-Link) • SMTP Client • FTP Client • HTTP / HTTPS • Samba Client • PPPoE • UPnP Port Forwarding • RTP / RTSP/ RTCP • IP fi ltering • 3GPP • LLTD • CoS/QoS • SNMP • IGMP • 802.1x • ONVIF Compliant |
| Connectivity | • 1 x 10/100BaseT (Ethernet) with PoE |
| Security
| • Administrator and user group protection • Password authentication • HTTP and RTSP digest encryption • HTTPS streaming • Remote client access control |
System Management | |
|
System Requirements for Web Interface | • Operating System: - Windows® 7, Windows Vista®, Windows® XP, Windows® 2000 • Browser: - Internet Explorer 6 or higher, Chrome, Firefox, Safari |
| D-ViewCam™ System Requirements
| • Operating System: - Windows® 7, Windows Vista®, Windows® XP • Web Browser: Internet Explorer 6 or higher • Protocol: Standard TCP/IP |
| Event Management
| • Motion detection • Event notification and upload snapshots/video clips via HTTP, SMTP or FTP • Multiple event notification • Tamper detection • Supports multiple HTTP, SMTP and FTP servers • Multiple recording methods for easy backup |
| Remote Management |
• Configuration accessible via web browser • Take snapshots/video clips and save to local hard drive |
| D-ViewCam™ Software Functions
| • Remote management control of up to 32 cameras • Scheduled motion triggered, or manual recording options • Supports all management functions provided in web interface • Viewing of up to 32 cameras on one screen |
General Specifications | |
| Power Input | • 12V DC 1.25 A, 50/60 Hz, 802.3af PoE |
| Max. Power Consumption | • 4.4 watts |
| Operating Temperature | • 0° to 40° C (32 to 104° F) |
| Storage Temperature | • -20° to 70° C (-4° to 158° F) |
| Humidity | • 90% non-condensing |
| Weight | • 16.44 ounces (446 grams) |
| Certifications
| • CE (Class A)C • E LVD (EN60965-1) • FCC (Class A), • ICES-003, • C-Tick |
| Dimensions | • Width (Base): 5.12” (130mm) • Height: 3.85” (97.8mm) |
Warranty | |
| Warranty | •1-Year Limited1 |
Order Information | |
| Full HD Fixed Dome Network Camera | |
1 1-Year Limited Warranty available only in the USA and Canada.
All references to speed are for comparison purposes only. Product specifications, size and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
D-Link's DCS-6112 Full HD Fixed Dome IP Camera features industry-leading High-Definition ( Full 1080p HD) Megapixel resolution and H.264 compression that enable high-quality video footage to be recorded. DCS-6112 connects to a network to provide high-quality live video over the Internet. This cameras also features a 3-axis inner bracket that allows for flexible observation area adjustment. With the free-bundled D ViewCam 32-channel recording software, this IP camera provides a complete solution for high-quality live viewing and reliable recording. The camera also have a built-in MicroSD card slot which can be used for local backup by storing important events on an easily retrievable MicroSD card. |
| Image Sensor Type: | CMOS |
| Illumination: | Minimum 0.12 Lux |
| Color Supported: | Color |
| Video Formats: | Motion JPEG |
| Video Formats: | MPEG-4 |
| Maximum Video Resolution: | 1920 x 1080 |
| Audio Formats: | AAC |
| Image Formats: | JPEG |
| Focal Length: | 4.37 mm |
| Aperture Range: | f/1.5 |
| Digital Zoom: | 16x |
| Focus Modes: | Fixed Focus |
| Connectivity Technology: | Cable |
| Ethernet: | Yes |
| Ethernet Technology: | Fast Ethernet |
| Protocols: | TCP/IP |
| Protocols: | UDP |
| Protocols: | ICMP |
| Protocols: | DHCP |
| Protocols: | NTP |
| Protocols: | DNS |
| Protocols: | DDNS |
| Protocols: | SMTP |
| Protocols: | FTP |
| Protocols: | HTTP |
| Protocols: | HTTPS |
| Protocols: | PPPoE |
| Protocols: | UPnP |
| Protocols: | RTP |
| Protocols: | RTSP |
| Protocols: | RTCP |
| Protocols: | IP |
| Protocols: | 3GPP |
| Protocols: | LLTD |
| Protocols: | COS |
| Protocols: | QoS |
| Protocols: | SNMP |
| Protocols: | IGMP |
| Flash Memory Capacity: | 128 MB |
| Analog Video Out: | Yes |
| Network (RJ-45): | Yes |
| Maximum Power Consumption: | 4.40 W |
| Height: | 3.9" |
| Diameter: | 5.1" |
| Weight (Approximate): | 1.03 lb |
| System Requirements: |
|
| Compatibility: |
|
| Security Features: |
|
| Limited Warranty: | 5 Year |
Product images may differ from actual product appearance.
- This item cannot be shipped to PO Boxes.
- This item can be shipped only within the U.S.
- UPC: 790069369582
- Mfr's Part #: DCS-6112
