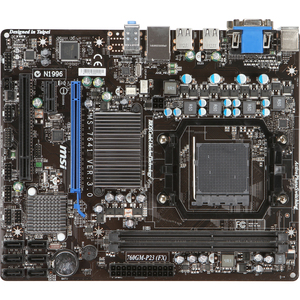

MSI 760GM-P23 (FX) Desktop Motherboard - AMD 760G Chipset - Socket AM3+ - Micro ATX - 1 x Processor Support - 16 GB DDR3 SDRAM Maximum RAM - CrossFire Support - Serial ATA/300 RAID Supported Controller - 1 x PCIe x16 Slot
free shipping
- Item #:
- N-176652
- Category:
- Motherboards
- Availability:
- Item is in stock
- Packaging:
- Retail Packaging
- Platform:
- N/A
- Condition:
- New
- Brand:
- MSI Computer
Processor & Chipset
| Chipset Manufacturer: | AMD |
| Chipset Model: | 760G |
| Total Processor Supported: | 1 |
| Processor Technology: | HyperTransport 3.0 Technology |
| Processor Socket: | Socket AM3+ |
| Processor Supported: | Athlon II X3 |
| Processor Supported: | Athlon II X4 |
| Processor Supported: | Athlon II X2 |
| Processor Supported: | Athlon II |
| Processor Supported: | Phenom II X3 |
| Processor Supported: | Phenom II X4 |
| Processor Supported: | Phenom II X2 |
| Processor Supported: | Phenom II X6 |
| Processor Supported: | Sempron |
| Processor Supported: | Phenom II |
| HyperTransport Speed: | 2600 MHz |
| 64-bit Processing: | Yes |
| Multi GPU Supported: | CrossFire |
Memory
| Number of Memory Slots: | 2 |
| Memory Form Factor: | DIMM |
| Maximum Memory: | 16 GB |
| Memory Standard: | DDR3-1333/PC3-10600 |
| Memory Standard: | DDR3-1066/PC3-8500 |
| Memory Standard: | DDR3-800/PC3-6400 |
| Memory Technology: | DDR3 SDRAM |
I/O Controller
| Controller Type: | Serial ATA/300 |
| RAID Supported: | Yes |
| RAID Levels: | 0 |
| RAID Levels: | 1 |
| RAID Levels: | 1+0 |
| RAID Levels: | JBOD |
Video
| Onboard Video: | No |
Audio
| Sound Controller Manufacturer: | Realtek |
| Sound Controller Model: | ALC887 |
| Audio Channels: | 7.1 |
Network & Communication
| Gigabit Ethernet: | Yes |
I/O Expansions
| Number of Total Expansion Slots: | 3 |
| Number of PCI Slots: | 1 |
| PCI Express Standard: | PCI Express 2.0 |
| Total Number of PCI Express Slots: | 2 |
| Number of PCI Express x1 Slots: | 1 |
| Number of PCI Express x16 Slots: | 1 |
Interfaces/Ports
| Total Number of USB Ports: | 6 |
| Number of USB 2.0 Ports: | 6 |
| Audio Line In: | Yes |
| Audio Line Out: | Yes |
| Microphone Port: | Yes |
| VGA: | Yes |
| DVI: | Yes |
| Number of DVI Outputs: | 1 |
| Network (RJ-45): | Yes |
| Number of Network (RJ-45) Ports: | 1 |
| PS/2 Port: | Yes |
| Number of PS/2 Ports: | 2 |
Onboard Interfaces
| Number of SATA Interfaces: | 6 |
| Total Number of Onboard USB Ports: | 2 |
| Number of Onboard USB 2.0 Ports: | 2 |
| Onboard Serial Header: | Yes |
| Onboard LEDs Header: | Yes |
| Onboard Audio Header: | Yes |
| Onboard S/PDIF Header: | Yes |
Controls/Indicators
| Buttons & Keys: | CMOS Clear |
| Buttons & Keys: | OC Genie |
Power Description
| Power Supply Supported: | EPS12V |
Physical Characteristics
| Form Factor: | Micro ATX |
| Width: | 9.6" |
| Depth: | 8.1" |
Miscellaneous
| Certifications & Standards: |
|
| Green Compliant: | Yes |
| Green Compliance Certificate/Authority: | WEEE |
Warranty
| Limited Warranty: | 3 Year |
Product images may differ from actual product appearance.
Be the first to review this product.
Write a Review
Shipping Restrictions
- This item cannot be shipped to PO Boxes.
- This item can be shipped only within the U.S.
- UPC: 816909088403
- Mfr's Part #: 760GM-P23(FX)
