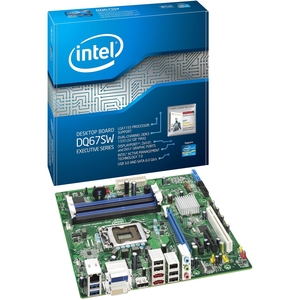

Intel Executive DQ67SW Desktop Motherboard - Intel Q67 Express Chipset - Socket H2 LGA-1155 - 10 Pack - Micro ATX - 1 x Processor Support - 32 GB DDR3 SDRAM Maximum RAM - Serial ATA/300, Serial ATA/600 RAID Supported Controller - CPU Dependent Video - 1 x
free shipping
- Item #:
- N-175273
- Category:
- Motherboards
- Availability:
- Item is in stock
- Packaging:
- Retail Packaging
- Platform:
- N/A
- Condition:
- New
- Brand:
- Intel
General Information
Based on the latest Intel Q67 Express Chipset with Intel vPro technology, Intel Desktop Board DQ67SW is designed to showcase the superior performance quality of the 2nd generation Intel Core vPro processor family, enhance office productivity, and lower the total cost of ownership for your business PCs with the newest Intel Active Management Technology (Intel AMT) 7.0. Designed with exceptional stability and compatibility, Intel Desktop Board DQ67SW equipped with the latest SuperSpeed USB 3.0 and SATA 6 Gb/s ports with RAID support. Dual independent display capability with DisplayPort and dual DVI ports. |
Processor & Chipset
| Chipset Manufacturer: | Intel |
| Chipset Model: | Q67 Express |
| Total Processor Supported: | 1 |
| Processor Technology: | vPro Technology |
| Processor Technology: | Turbo Boost Technology 2.0 |
| Processor Technology: | Hyper-Threading Technology |
| Processor Socket: | Socket H2 LGA-1155 |
| Processor Supported: | Core i7 |
| Processor Supported: | Core i5 |
| Processor Supported: | Core i3 |
| Processor Supported: | Pentium |
| 64-bit Processing: | Yes |
Memory
| Number of Memory Slots: | 4 |
| Maximum Memory: | 32 GB |
| Memory Standard: | DDR3-1066/PC3-8500 |
| Memory Standard: | DDR3-1333/PC3-10600 |
| Memory Technology: | DDR3 SDRAM |
I/O Controller
| Controller Type: | Serial ATA/300 |
| Controller Type: | Serial ATA/600 |
| RAID Supported: | Yes |
| RAID Levels: | 0 |
| RAID Levels: | 1 |
| RAID Levels: | 0+1 |
| RAID Levels: | 5 |
Video
| Onboard Video: | CPU Dependent Video |
| Graphics Controller Manufacturer: | Intel |
Audio
| Sound Controller Manufacturer: | Realtek |
| Sound Controller Model: | ALC888S |
| Audio Channels: | 7.1 |
Network & Communication
| Gigabit Ethernet: | Yes |
I/O Expansions
| Number of Total Expansion Slots: | 4 |
| Number of PCI Slots: | 1 |
| PCI Express Standard: | PCI Express 2.0 |
| Total Number of PCI Express Slots: | 3 |
| Number of PCI Express x1 Slots: | 1 |
| Number of PCI Express x4 Slots: | 1 |
| Number of PCI Express x16 Slots: | 1 |
Interfaces/Ports
| eSATA: | Yes |
| Total Number of USB Ports: | 6 |
| Number of USB 2.0 Ports: | 4 |
| Number of USB 3.0 Ports: | 2 |
| Total Number of FireWire/i.LINK Ports: | 1 |
| Number of FireWire/i.LINK 400 Ports: | 1 |
| Audio Line In: | Yes |
| Audio Line Out: | Yes |
| Microphone Port: | Yes |
| DisplayPort: | Yes |
| Number of DisplayPort Outputs: | 1 |
| DVI: | Yes |
| Number of DVI Outputs: | 1 |
| Network (RJ-45): | Yes |
Onboard Interfaces
| Number of SATA Interfaces: | 6 |
| Total Number of Onboard USB Ports: | 4 |
| Number of Onboard USB 2.0 Ports: | 4 |
| Total Number of Onboard FireWire/i.LINK Ports: | 1 |
| Number of Onboard FireWire/i.LINK 400 Ports: | 1 |
| Onboard LEDs Header: | Yes |
| Onboard Audio Header: | Yes |
| Onboard S/PDIF Header: | Yes |
Power Description
| Power Supply Supported: | ATX12V |
Physical Characteristics
| Form Factor: | Micro ATX |
| Width: | 9.6" |
| Depth: | 9.6" |
Product images may differ from actual product appearance.
Be the first to review this product.
Write a Review
Shipping Restrictions
- This item cannot be shipped to PO Boxes.
- This item can be shipped only within the U.S.
- UPC: 735858221184
- Mfr's Part #: BLKDQ67SWB3
