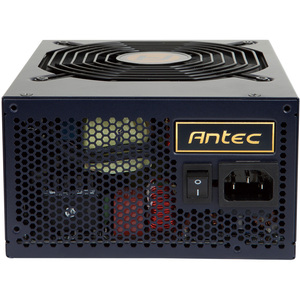

Antec HCP-750 ATX12V & EPS12V Power Supply - 92% Efficiency - 750 W - Internal - 110 V AC, 220 V AC
free shipping
- Item #:
- N-173695
- Category:
- Power Supplies
- Availability:
- Item is in stock
- Packaging:
- Retail Packaging
- Platform:
- N/A
- Condition:
- New
- Brand:
- Antec
General Information
Antec's HCP-750 unifies raw power with advanced PSU engineering to meet the demands of high performing PCs. A full-featured, 80 PLUS Gold certified unit, the HCP-750 is capable of outputting 99 percent of its rated power on four +12V rails, ensuring CPU and graphics card compatibility. Exclusive to the High Current series, HCP-750 boasts High Current heavy-gauge 16 AWG wiring that boosts conductivity, increasing efficiency and improving power delivery. In addition, a doublelayer PCB, onboard DC-to-DC converters and Active Power Factor Correction (PFC) provide substantial voltage stability. To tackle the needs of your system, pick up Antec's HCP-750. |
Technical Information
| Efficiency: | 92% |
| Power Factor Correction (PFC): | Active |
| Number of Fans: | 1 |
| Protection Type: | Over Current |
| Protection Type: | Over Power |
| Protection Type: | Over Voltage |
| Protection Type: | Over Temperature |
| Protection Type: | Short Circuit |
| Modular: | Yes |
| ATI CrossFire Supported: | Yes |
| NVIDIA SLI Supported: | Yes |
Reliability
| MTBF: | 100000 Hour |
Power Description
| Input Voltage Type: | AC |
| Input Voltage: | 110 V AC |
| Input Voltage: | 220 V AC |
| Input Voltage Range: | 100 V AC to 240 V AC |
| Number of +12V Rails: | 4 |
| Output Voltage: | 3.3 V DC @ 25 A |
| Output Voltage: | 5 V DC @ 25 A |
| Output Voltage: | 12 V DC @ 40 A |
| Output Voltage: | -12 V DC @ 500 mA |
| Output Voltage: | 5 V DC @ 3 A |
| Input Current: | 11 A @110 V AC/5.50 A @220 V AC |
| Output Power: | 750 W |
Interfaces/Ports
| Plug/Connector: | On/Off Switch |
| Receptacles: | 1 x 20+4pin ATX Motherboard |
| Receptacles: | 1 x 4+4pin ATX12V Motherboard |
| Receptacles: | 1 x 8-pin EPS12V Motherboard |
| Receptacles: | 6 x 6+2pin PCI-E |
| Receptacles: | 9 x Serial ATA |
| Receptacles: | 6 x 4-pin LP4 Peripheral Device |
| Receptacles: | 1 x 4-pin SP4 Floppy Drive |
Physical Characteristics
| Form Factor: | Internal |
| Height: | 3.4" |
| Width: | 5.9" |
| Depth: | 7.1" |
| Weight (Approximate): | 5.50 lb |
Miscellaneous
| Green Compliant: | Yes |
| Green Compliance Certificate/Authority: | RoHS |
| Green Compliance Certificate/Authority: | 80 Plus Gold |
| Country of Origin: | China |
Warranty
| Limited Warranty: | 5 Year |
Product images may differ from actual product appearance.
Be the first to review this product.
Write a Review
Shipping Restrictions
- This item cannot be shipped to PO Boxes.
- This item can be shipped only within the U.S.
- UPC: 761345239707
- Mfr's Part #: HCP-750
