Click to enlarge
free shipping
Item #:
N-156892
Category:
Adapters
Availability:
Item is in stock
Packaging:
Retail Packaging
Platform:
N/A
Condition:
New
Brand:
Startech.com
Your Price: $50.90
Add To Cart

Product Rating

(0 Ratings) Write a Review

General Information

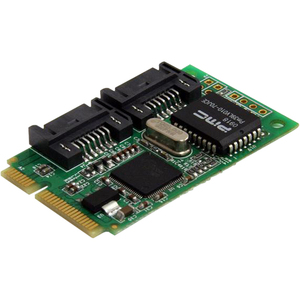

The MPEXSATA22I 2-Port Mini PCIe to SATA Controller Card lets you add 2 SATA 3Gbps connectors to a small form factor or embedded system, through a Mini PCI Express (Mini Card) expansion slot.

Perfect for upgrading the capabilities of a system that would typically have a very limited number of internal ports, the Mini PCIe to SATA controller card is compatible with all types of Serial ATA devices, including hard drives (HDDs), Solid State Drives (SSD), and optical drives (CD/DVD/BD).

A versatile solution for internal storage applications, this PCI Express to SATA controller card features built-in RAID support (JBOD, BIG, RAID 0, RAID 1), and is backed by a StarTech.com 2-year warranty and free lifetime technical support.

Technical Information
Host Interface:PCI Express
Data Transfer Rate:2.34 Gbps
Platform Supported:PC

Interfaces/Ports
Ports:2 x 7-pin Serial ATA Serial ATA/300 Serial ATA

Physical Characteristics
Form Factor:Plug-in Card
Dimensions:1.2" Height x 2.0" Width x 0.2" Thickness
Height:1.2"
Width:2.0"
Thickness:157.5 mil
Weight (Approximate):0.28 oz

Miscellaneous
Additional Information:
  • Maximizes space-efficiency by adding two independent SATA ports through Mini PCI Express, an ideal solution for embedded systems and very small form factor systems
  • 48-bit LBA support for large capacity hard drives and built-in RAID for either performance or redundancy
  • Backed by a StarTech.com 2-year warranty and free lifetime technical support
Green Compliant:Yes
Green Compliance Certificate/Authority:RoHS

Warranty
Limited Warranty:2 Year



Product images may differ from actual product appearance.
Be the first to review this product. Write a Review
Shipping Restrictions
  • This item cannot be shipped to PO Boxes.
  • This item can be shipped only within the U.S.


  • UPC: 065030842501
  • Mfr's Part #: MPEXSATA22I
