Click to enlarge
free shipping
Item #:
N-144167
Category:
UPS
Availability:
Item is in stock
Packaging:
Retail Packaging
Platform:
N/A
Condition:
New
Brand:
APC - American Power Conversion Corp.
Your Price: $1089.31
Add To Cart

Product Rating

(0 Ratings) Write a Review

General Information

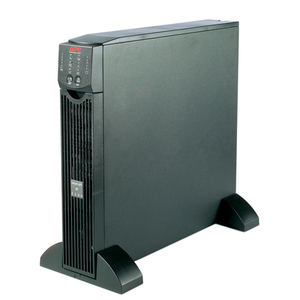

Smart-UPS On-Line provides high density, true double-conversion on-line power protection for servers, voice / data networks, medical labs, and light industrial applications. Capable of supporting loads from 1 to 20kVA in a rack/tower convertible form, the Smart-UPS On-Line is available from 2U to 12U. Recent family extensions at 15 and 20kVA enable support of power hungry blade servers or heavily loaded equipment racks. When business-critical systems require runtime in hours, not minutes, Smart-UPS On-Line can be configured with matching battery packs to comply with aggressive runtime demands. The included PowerChute management software provides unattended graceful shutdown of network operating systems. All models 5kVA and above include an integrated Network Management Card for remote management (optional on models below 5 kVA).

Technical Information
Plug/Connector Type:NEMA 5-20P
Receptacles:6 x NEMA 5-15R

Power Description
Load Capacity:2.20 kVA/1.75 kW
Input Voltage:110 V AC
Input Voltage Range:120 V AC Nominal
Input Voltage Range:90 V AC to 150 V AC Mains Operation
Output Voltage:120 V AC
Frequency:60 Hz Input

Management
Overload Protection:

Resettable circuit breaker

Bypass Switch:Automatic
Bypass Switch:Internal
Emergency Power OFF:Yes

Interfaces/Ports
Interfaces/Ports:DB-9 RS-232
Interfaces/Ports:USB
Interfaces/Ports:Serial
Modular Slots:1 x SmartSlot

Battery Information
Batteries:1 x Maintenance-free, Sealed, Spill-proof Sealed Lead Acid User Replaceable Hot-swappable
Backup/Run Time:0.05 Hour 1.75 kW Full Load
Backup/Run Time:0.18 Hour Half Load
Battery Recharge Time:3 Hour Typical

Physical Characteristics
Height:3.4"
Width:17.0"
Depth:22.0"
Form Factor:Tower
Weight (Approximate):60.50 lb

Miscellaneous
Package Contents:
  • Smart-UPS RT SURTA2200XL 2200 VA Tower UPS
  • CD with Software
  • Documentation CD
  • Installation Guide
  • Smart UPS Signalling RS-232 Cable
  • USB Cable
  • User Manual
Additional Information:

Supports both Tower and Rack-mountable configurations but does not include rack mounting kit

Certifications & Standards:
  • BSMI
  • CSA
  • FCC Part 15 Class B
  • UL 1778
  • UL
  • CE
  • C-Tick
Green Compliant:Yes
Green Compliance Certificate/Authority:RoHS

Warranty
Limited Warranty:2 Year



Product images may differ from actual product appearance.
Be the first to review this product. Write a Review
Shipping Restrictions
  • This item cannot be shipped to PO Boxes.
  • This item can be shipped only within the U.S.


  • UPC: 731304278054
  • Mfr's Part #: SURTA2200XL
