General Information

The 105 Series is a high quality UHF camera-mount wireless system that features 92 User-Selectable frequencies to assure you of always finding a "free" channel.

Technical Information
System Operating Frequency:566.25 MHz to 589.75 MHz UHF
System Frequency Response:50 Hz to 12 kHz
Operating Range:300 ft

Interfaces/Ports
Interfaces/Ports:Mini Jack Audio Out

Controls/Indicators
Status Indicators:

LED

Battery Information
Batteries:2 x AA
Battery Chemistry:Alkaline
Battery Run Time:8 Hour

Environmental Conditions
Temperature:14°F (-10°C) to 122°F (50°C) Operating

Physical Characteristics
Dimensions:3.9" Height x 2.5" Width x 1.1" Depth - Receiver
Dimensions:3.9" Height x 2.5" Width x 1.1" Depth - Transmitter
Weight (Approximate):6.35 oz - Receiver
Weight (Approximate):5.64 oz - Transmitter

Miscellaneous

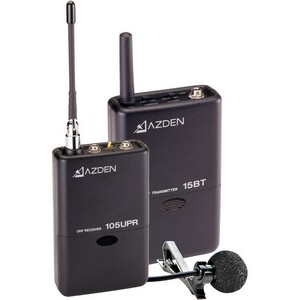

Package Contents:
  • 15BT/EX-503L Transmitter
  • 105UPR Receiver
  • Clip-on Omni-directional ECM Lavalier Microphone
    • Additional Information:
  • Compact Camera-Mount System
  • New, Pivoting High-Gain Antenna
  • New Case Design with Attached Shoe-Mount
  • Headphone Output with Volume Control
  • Modulation Mode: FM
  • Oscillator: Phase Lock Loop synthesizer

    • Receiver:

  • RF Squelch level: -92 dBm
  • Adjacent Channel Selectivity: ? 67 dBm
  • Intermodulation: ? 62 dBm
  • Noise Reduction: Expander(TOKO)
  • Audio Output: -22 dBm (balanced) @ 1 kHz ± 40 kHz
  • Output Impedance: 2 k ? (balanced)
  • S/N Ratio: >57 dB (± 5 kHz)

    • Belt-pack Transmitter:

  • RF Power: 25 mW
  • Antenna: 1/4 wavelength
  • Reference Deviation: ± 5 kHz (-60 dBm - 1 kHz input) - ± 40 kHz max deviation
  • Noise Reduction: Compander (TOKO)
  • Power Requirement: 2 x AA Batteries (Alkaline) - 6-8 hours runtime



    • Product images may differ from actual product appearance.
    Be the first to review this product. Write a Review
    Shipping Restrictions
    • This item cannot be shipped to PO Boxes.
    • This item can be shipped only within the U.S.


    • UPC: 095528105061
    • Mfr's Part #: 105LT
