Item #:
N-128302
Category:
Power Supplies
Availability:
Item is in stock
Packaging:
Retail Packaging
Platform:
N/A
Condition:
New
Brand:
Startech.com
Your Price: $93.00
Add To Cart

Product Rating

(0 Ratings) Write a Review

General Information

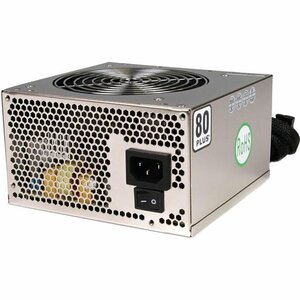

Replace or upgrade to a high efficiency and modular 630W ATX power supply. This 630 Watt Modular Power Supply is 80 Plus® certified, making it suitable as an energy efficient replacement/upgrade power supply for desktop PCs.

This ATX12V PSU features Active Power Factor Correction and 20/24-pin motherboard support to deliver the flexibility needed to support AMD or Intel CPU-based entry-level servers and high-end workstations, while providing stable power and maximum energy efficiency.

Compliant with ATX12V 2.3 standards, this EPS12V 2.91 power supply offers four 12V power rails, an 8-pin EPS connector, and a modular cable design, enabling you to choose the connectors you require based on your system configuration. The power supply also features a 120mm fan for quieter, more efficient cooling in demanding systems.

Designed to provide dependable, long-lasting power, this higher level 630 Watt ATX12V 2.3 EPS12V power supply meets or exceeds 80 Plus standards, providing 80% or greater efficiency at 20%, 50% and 100% loads and is backed by StarTech.com''s 3-year warranty.

Technical Information
Efficiency:85.4%
Power Factor Correction (PFC):Active
Number of Fans:1
Protection Type:Over Voltage
Protection Type:Over Current
Protection Type:Over Power
Protection Type:Over Temperature
Protection Type:Short Circuit

Reliability
MTBF:100000 Hour

Power Description
Input Voltage:110 V AC
Input Voltage:220 V AC
Input Voltage Range:100 V AC to 240 V AC
Number of +12V Rails:4
Output Voltage:3.3 V DC @ 24 A
Output Voltage:5 V DC @ 24 A
Output Voltage:12 V DC @ 20 A
Output Voltage:-12 V DC @ 500 mA
Output Voltage:5 V DC @ 2.50 A
Input Current:10 A @110 V AC/5 A @220 V AC
Output Power:630 W

Interfaces/Ports
Receptacles:1 x 20+4pin ATX Motherboard
Receptacles:1 x 4+4pin ATX12V Motherboard
Receptacles:2 x 6+2pin PCI-E
Receptacles:1 x 6-pin PCI-E
Receptacles:6 x 15-pin Serial ATA
Receptacles:1 x 4-pin SP4 Floppy Drive
Receptacles:3 x 4-pin LP4 Peripheral Device

Physical Characteristics
Form Factor:Internal
Height:3.4"
Width:5.9"
Depth:5.6"
Weight (Approximate):4.64 lb

Miscellaneous
Package Contents:
  • Professional 630 Watt ATX12V 2.3 80 Plus Computer Modular Power Supply
  • 1 x 8-pin (6+2) PCI Express Modular Cable
  • 1 x 6-pin PCI Express Connector Modular Cable
  • 1 x 3xSATA Connector Modular Cable
  • 1 x 3xLP4 Molex Connector Modular Cable
  • 1 x SP4 Floppy Connector Modular Cable
  • 3 x Power Cord
  • 1 x Instruction Manual
    • Compatibility:

    CPUs:

  • Intel
  • AMD
    • Green Compliant:Yes
    Green Compliance Certificate/Authority:RoHS
    Green Compliance Certificate/Authority:80 Plus

    Warranty
    Limited Warranty:2 Year



    Product images may differ from actual product appearance.
    Be the first to review this product. Write a Review
    Shipping Restrictions
    • This item cannot be shipped to PO Boxes.
    • This item can be shipped only within the U.S.


    • UPC: 065030840224
    • Mfr's Part #: ATX2PW630PRO
