Click to enlarge
free shipping
Item #:
N-127539
Category:
Consumer Electronics
Availability:
Item is in stock
Packaging:
Retail Packaging
Platform:
N/A
Condition:
New
Brand:
Startech.com
Your Price: $278.28
Add To Cart

Product Rating

(0 Ratings) Write a Review

General Information

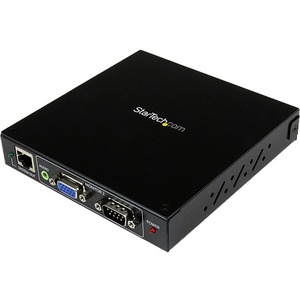

StarTech.com's DS Series Digital Signage Broadcaster VGA Cat5 Receiver offers a comprehensive audio and video extension system, with the added benefit of serial control!

The DSRXL VGA Receiver(s) can be installed at the destination points, allowing you to distribute VGA video as well as the accompanying audio and serial control signals from the connected Serial, Audio and VGA Cat5 Digital Signage Broadcaster (DS128 - purchased separately), all over one Cat5 cable.

Ensuring not only a simple and cost-effective way to extend and control VGA video and the corresponding audio, the DS series (DS128 and DSRXL) also maintains exceptional, high quality video, up to 1600x1200 over a 100m connection. For further extension, you can daisy chain up to five receivers, for a maximum distance of 300m.

Technical Information
Connectivity Technology:Wired
Number of Output Devices Supported:2
Maximum Operating Distance:984.25 ft

Video
Graphics Modes:UXGA
Maximum Video Resolution:1600 x 1200

Interfaces/Ports
Network (RJ-45):Yes
VGA Out:Yes
Headphone:Yes
Serial Port:Yes
Number of Network (RJ-45) Ports:2
Number of VGA Outputs:2

Media & Performance
Media Type Supported:Twisted Pair
Twisted Pair Cable Standard:Category 5

Power Description
Input Voltage:5 V DC

Physical Characteristics
Color:Black
Material:Steel
Height:1.0"
Width:5.2"
Depth:5.3"
Form Factor:Rack-mountable
Weight (Approximate):1.16 lb

Miscellaneous
Package Contents:
  • 1 x DS Series Cat.5 VGA Digital Signage Receiver with RS232 & Audio
  • 1 x Power Adapter
  • 1 x Instruction Manual
    • Certifications & Standards:
  • CE
  • FC
    • Green Compliant:Yes
    Green Compliance Certificate/Authority:RoHS

    Warranty
    Limited Warranty:2 Year



    Product images may differ from actual product appearance.
    Be the first to review this product. Write a Review
    Shipping Restrictions
    • This item cannot be shipped to PO Boxes.
    • This item can be shipped only within the U.S.


    • UPC: 065030837484
    • Mfr's Part #: DSRXL
