Click to enlarge
free shipping
Item #:
N-118837
Category:
UPS
Availability:
Item is in stock
Packaging:
Retail Packaging
Platform:
N/A
Condition:
New
Brand:
APC - American Power Conversion Corp.
Your Price: $905.29
Add To Cart

Product Rating

(0 Ratings) Write a Review

General Information

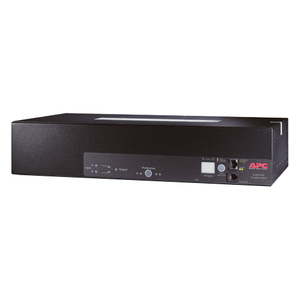

APC Rack Automatic Transfer Switches (rack ATS) provide reliable, redundant power to single-corded equipment. The rack ATS has dual input power cords supplying power to the connected load. If the primary power source becomes unavailable, the rack ATS will seamlessly source power from the secondary source without interrupting critical loads. Networked units have built-in network connectivity, which allows for remote management via Web, SNMP, or Telnet interfaces.

Technical Information
Plug/Connector Type:NEMA L6-30P
Receptacles:2 x IEC 320-C19
Receptacles:16 x IEC 320-C13

Power Description
Input Voltage Range:200 V AC to 208 V ACNominal
Output Voltage:200 to 208 V AC Nominal
Current:30 A Total Current Draw Per Phase
Current:24 A Derated Input Current
Frequency:50 Hz
Frequency:60 Hz

Physical Characteristics
Form Factor:2U Rack-mountable
Height:3.5"
Width:17.0"
Depth:9.3"
Weight (Approximate):14.30 lb

Miscellaneous
Package Contents:
  • AP7732 Automatic Transfer Switch
  • Documentation CD
  • Rack Mounting Brackets
  • RS-232 Configuration Cable
  • Warranty Card
    • Certifications & Standards:
  • PSE
  • TUV-C
  • TUV-NURTL
  • EN 55022 Class A
  • FCC Part 15 Class A
    • Green Compliant:Yes
    Green Compliance Certificate/Authority:RoHS

    Warranty
    Limited Warranty:2 Year



    Product images may differ from actual product appearance.
    Be the first to review this product. Write a Review
    Shipping Restrictions
    • This item cannot be shipped to PO Boxes.
    • This item can be shipped only within the U.S.


    • UPC: 731304268819
    • Mfr's Part #: AP7732
