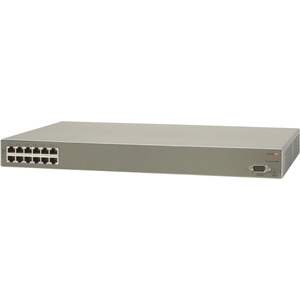

Click to enlarge
free shipping
Item #:
N-116930
Category:
Wireless Networking
Availability:
Item is in stock
Packaging:
Retail Packaging
Platform:
N/A
Condition:
New
Brand:
Powerdsine, Inc.
Your Price: $139.79
Add To Cart

Product Rating

(0 Ratings) Write a Review

General Information

PowerDsine 3500 Power over Ethernet (PoE) Midspan family offers a cost effective, fully IEEE 802.3af compliant solution to upgrade existing infrastructure with PoE.

PowerDsine 3500 family allows IP telephones, wireless LAN access points, security network cameras and IP terminals to receive power, along with data, over standard Ethernet cables, leaving network infrastructure completely unaltered.

With PoE, data and power flow smoothly and safely over a single LAN cable with no interference. A PoE Midspan (PoE injector) resides between the Ethernet switch and the data terminals, delivering data, along with power, from switch to powered devices. It is a highly effective means for injecting power into existing LAN cables.

Power Description
Input Voltage:110 V AC
Input Voltage:220 V AC
Output Voltage:48 V DC
Input Current:4 A @ 110 V AC
Input Current:2 A @ 220 V AC
Frequency:50 Hz
Frequency:60 Hz
Output Power:100 W Total
Output Power:15.40 W Per Port

Interfaces/Ports
Output Ports:6 x RJ-45 10/100Base-TX

Physical Characteristics
Height:1.8"
Width:17.3"
Depth:10.8"
Weight (Approximate):8.80 lb

Miscellaneous
Compatibility:
  • IP Telephones
  • Wireless LAN Access Points
  • Security Network Cameras
  • IP Terminals
    • Certifications & Standards:
  • IEEE 802.3af compliant
  • Safety: UL, cUL, GS Mark, EN 60950, C-Tick
  • Emissions & amp; Immunity: EN55022 (CISPR 22)Class B, EN55024 (CISPR 24),CE, VCCI
    • Green Compliant:Yes
    Green Compliance Certificate/Authority:RoHS
    Green Compliance Certificate/Authority:WEEE

    Warranty
    Limited Warranty:1 Year



    Product images may differ from actual product appearance.
    Be the first to review this product. Write a Review
    Shipping Restrictions
    • This item cannot be shipped to PO Boxes.
    • This item can be shipped only within the U.S.


    • UPC: 844117001044
    • Mfr's Part #: PD-3506/AC
